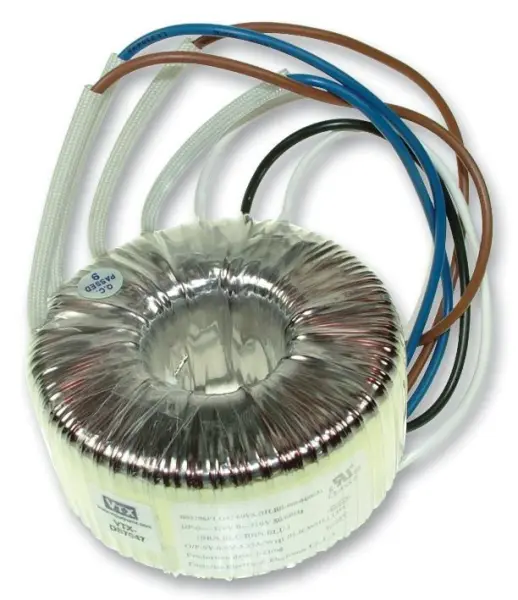

Multicomp Pro Toroidal Transformer 500VA 2x25V 230V

The Multicomp Pro VTX series toroidal transformer delivers reliable power conversion for industrial and power management applications. This open-style transformer features flying leads for straightforward integration into your projects.

With a robust power rating of 500VA and a primary voltage of 230V 50/60Hz, it provides dual secondary windings at 2 x 25V with a nominal secondary current of 10A. The dual secondary design offers flexibility—windings can be connected in series, parallel, or used independently to suit your circuitry needs.

The toroidal construction ensures a low level radiated magnetic field, minimising interference with sensitive components. This model is chassis-mountable and comes complete with a fixing kit for secure installation. The wire-leaded terminations allow for straightforward soldering or connection.

Specifications

• Power Rating: 500VA
• Primary Voltage: 230V 50/60Hz
• Secondary Voltage: 2 x 25VAC
• Secondary Current (Nominal): 10A
• Winding Type: Single primary, dual secondary
• Transformer Mounting: Chassis mount
• Terminations: Wire leaded
• Series: VTX
• Weight: 4580g
• Dimensions (approx.): 43mm x 33mm x 15mm

This transformer is an excellent choice for custom power supplies, audio equipment, and other demanding power applications, delivering steady and reliable performance.
