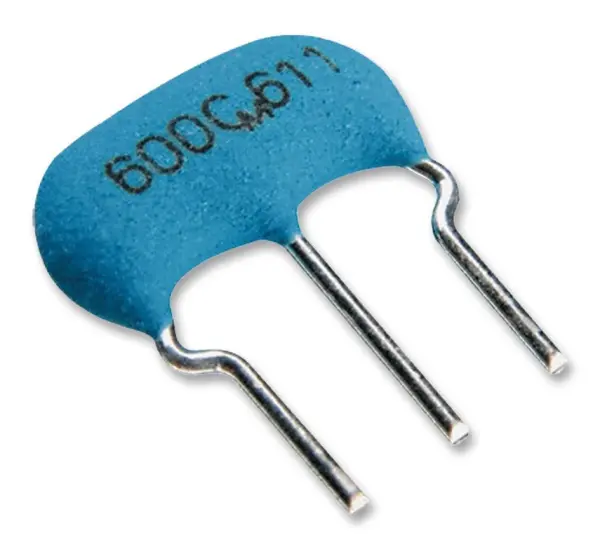

MURATA Ceramic Resonator, 8MHz, 3 Pin, 25 Ohm

The MURATA CERALOCK® Ceramic Resonator is a highly reliable 8MHz component featuring built-in load capacitors. Designed specifically for clock oscillators across a broad range of microprocessors, this resonator simplifies circuit design by eliminating the need for external load capacitors. This allows for high-density mounting and enables the creation of oscillator circuits that require no adjustment, streamlining the manufacturing process and saving valuable board space.

With a maximum resonant impedance of 25Ω and a built-in load capacitance of 15pF, this component offers consistent performance. Variations in built-in capacitance values make it applicable to various integrated circuits. The resonator is highly stable over a wide temperature range, operating reliably between -20°C and 80°C. Furthermore, its compact and lightweight form factor exhibits superior shock resistance, ensuring durability in demanding environments.

Key Features

• Frequency: 8MHz with a tolerance of ± 0.5%
• Built-in Load Capacitors: 15pF capacitance removes the need for external components
• Mounting: Through-hole design for secure installation
• Durability: Compact, lightweight, and resistant to shock
• Compliance: REACH compliant

Measuring 43 mm in height, 33 mm in width, and 15 mm in depth, and weighing just 0.5 grams, this resonator is well-suited for space-constrained applications. It is an optimal choice for engineers and designers working on both consumer electronics and industrial systems, providing a dependable timing solution without the complexity of external capacitor tuning.
