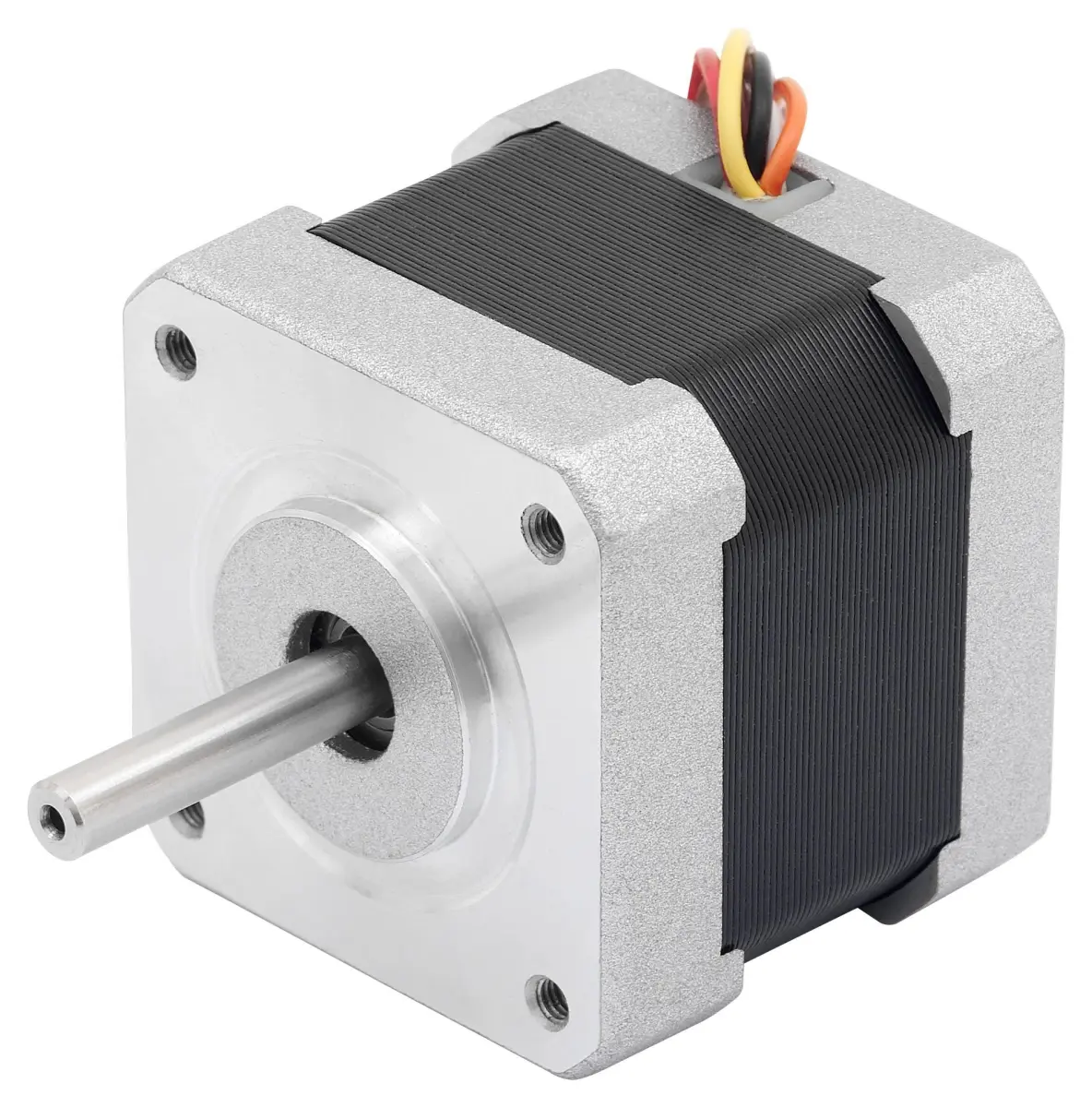

NANOTEC High Torque Bipolar Stepper Motor 1.4A 1.8° 0.09Nm

The NANOTEC High Torque Bipolar Stepper Motor provides reliable and economical drive solutions, engineered for a long service life. It delivers high step angle precision and excellent step resolution, making it an ideal choice for precision motion control tasks.

Stepper motors are particularly effective when high torque is required at speeds of less than 2000rpm. This small-size stepper motor is perfectly suited for applications that demand high precision, compact dimensions, fast speeds, and a long operational life. It features a standardised shaft diameter of 5mm, which allows for the straightforward installation of an encoder on double shaft versions for precise position monitoring.

As a miniature high torque single shaft motor, it offers a holding torque of 9Ncm and an inductivity of 1.6mH per winding. The bipolar coil design and 1.8° step angle ensure smooth and accurate movements. It operates with a current rating of 1.4A and a maximum voltage rating of 24VDC, utilising a 4-wire configuration.

With compact dimensions of 43mm in height, 33mm in width, and 15mm in depth, and a lightweight construction of just 150 grams, this motor integrates seamlessly into space-constrained environments without compromising on performance.

Key Specifications

• Motor Size: 42mm
• Step Angle: 1.8°
• Holding Torque: 9Ncm (0.09N-m)
• Current Rating: 1.4A
• Maximum Voltage: 24VDC
