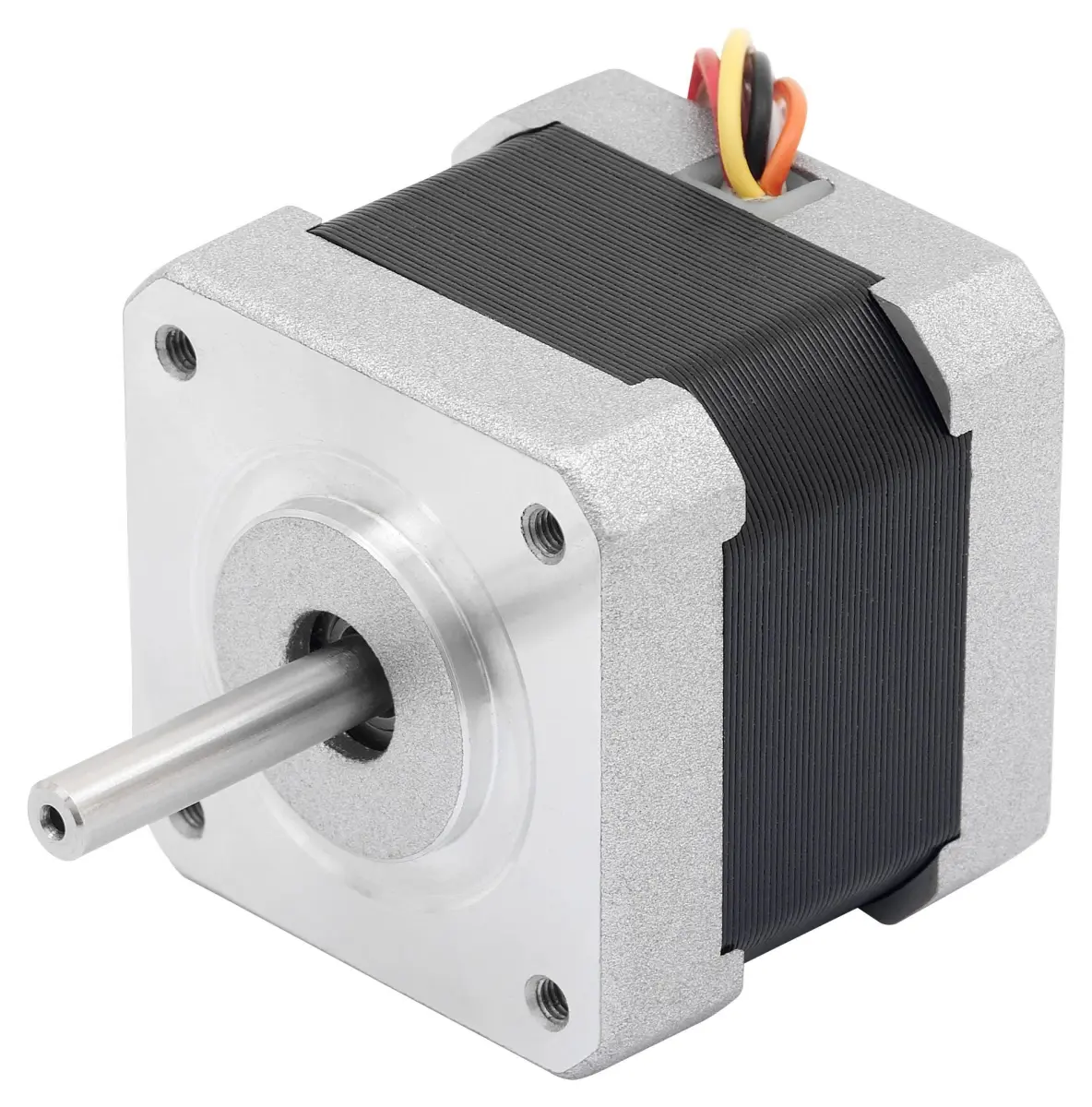

NANOTEC High Torque Bipolar Stepper Motor, 1.8A, 1.8°, 0.5N-m

The NANOTEC ST4118L1804-A High Torque Bipolar Stepper Motor is a reliable and economical 2-phase motor designed for precision motion control. It delivers exceptional step angle precision and high-resolution performance, making it an ideal choice for applications demanding accuracy and long-term reliability.

This motor excels in scenarios requiring substantial torque at speeds below 2000 rpm. Its compact design is perfectly suited for installations where space is limited, but high precision, fast response times, and an extended service life are non-negotiable. The motor is built to withstand rigorous use in demanding industrial environments.

A key feature is the standardised 5mm shaft diameter. In the available double-shaft version, this allows for the straightforward installation of an encoder, enabling precise position monitoring and feedback for advanced control systems. This makes the motor highly versatile for sophisticated automation tasks.

Key Specifications & Features

• Motor Type: 2-Phase Bipolar Stepper Motor
• Step Angle: 1.8° for high resolution
• Holding Torque: 50 Ncm (0.5 N-m)
• Rated Current: 1.8A per phase
• Maximum Voltage: 24 VDC
• Inductance: 3.3 mH per winding
• Connection: 4-wire configuration
• Construction: Robust, single-shaft design
• Product Range: ST4118 series

Engineered for durability and consistent performance, this NANOTEC stepper motor provides a powerful and precise drive solution for a vast array of automated and control applications.
