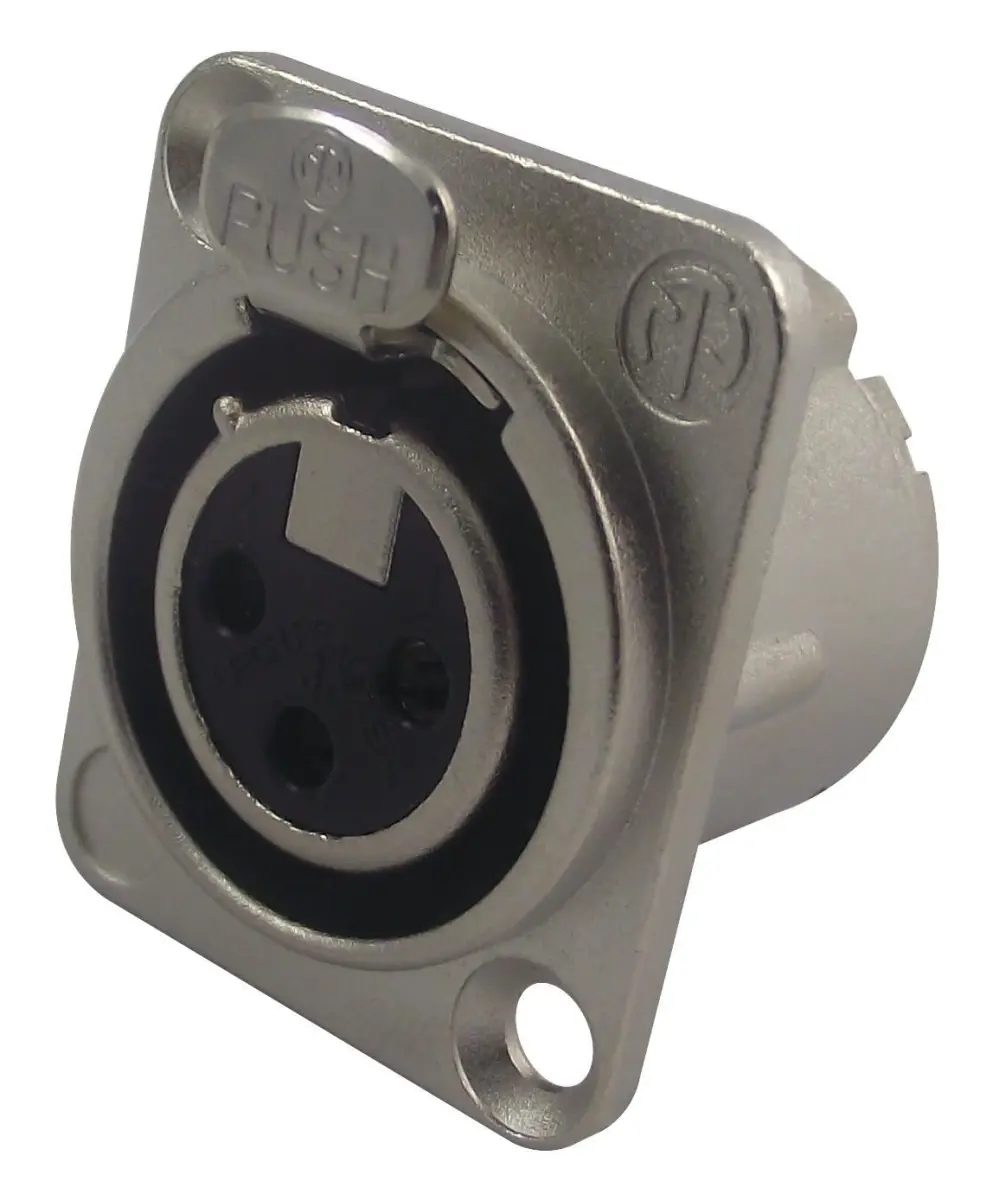

Neutrik 3-Pole XLR Chassis Socket, Silver Plated Contacts

This 3-pole XLR chassis socket from Neutrik features silver-plated contacts for reliable audio connections. As the next generation of the DL series, it delivers greater functionality and performance for professional and consumer audio applications.

Designed with an all-metal housing, this socket works in combination with a new duplex ground contact to provide high RF protection and ground conductivity. The connector includes an all-metal retention bar, replacing older plastic designs for enhanced durability. Additionally, the 3-pole version features unique cage-type female contacts to ensure increased conductivity.

The D-style housing ensures installation compatibility with industry-standard D mounting dimensions, making it a versatile choice for panel mounting. With a voltage rating of 50VAC and a current rating of 6A, it is built for demanding environments.

Compact dimensions of 33 mm in height, 22 mm in width, and 2 mm in depth, alongside a lightweight profile of just 3.1 grams, make this socket suitable for installations where space is limited.
