NEUTRIK 4-Pole Male XLR Connector, Black, Silver Plated Contacts
Premium 4-pole male XLR connector with silver-plated contacts, ideal for professional audio and consumer electronics.

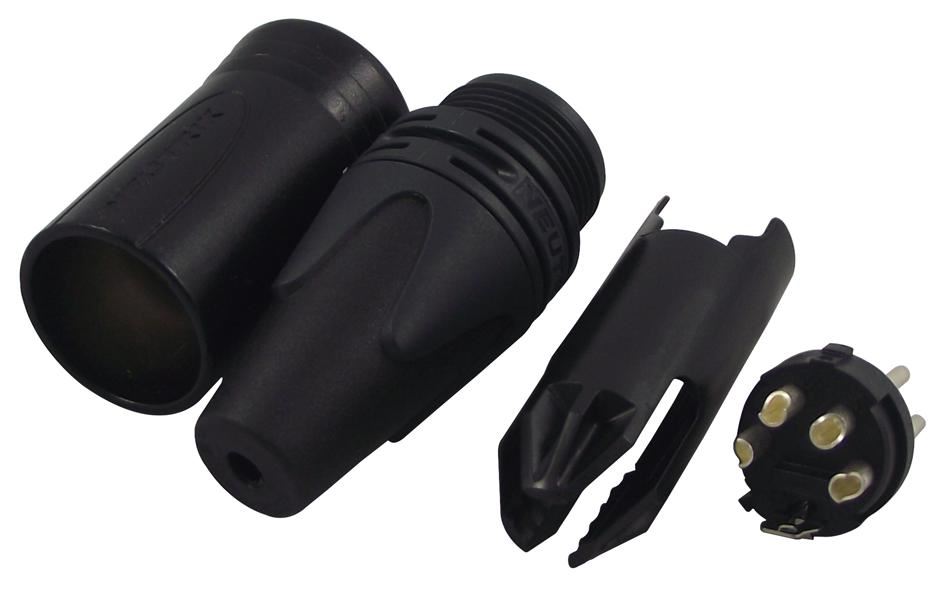

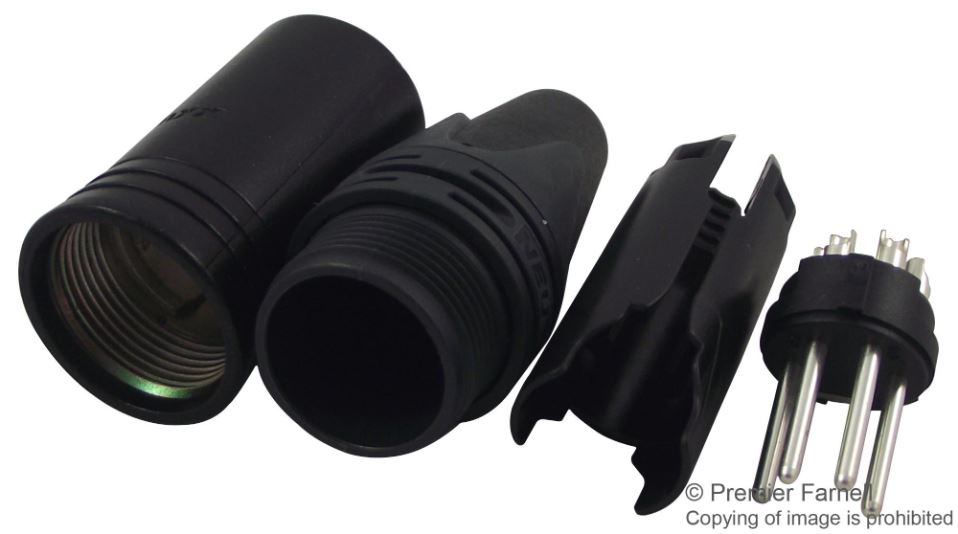

The NEUTRIK NC4MXX-BAG is a 4-pole male XLR cable connector, designed for professional audio and consumer electronics applications. It incorporates an improved chuck-type polyacetal (POM) strain relief, enhancing both durability and ease of assembly. The ergonomic design ensures a secure connection with higher pull-out resistance, while the rugged zinc die-cast shell with black chromium plating provides long-lasting dependability.
Key Features
- Improved strain relief for enhanced cable retention and simplified assembly.
- Latch lock mechanism for secure mating.
- Polyamide (PA 6.6 30% GR) insert for durability.
- Silver-plated brass (CuZn39Pb3) contacts for optimal signal transmission.
- Coloured rings and boots available for easy identification and coding.
Technical Specifications
- UL ECBT2.E135070 and cUL ECBT8.E135070 certified.
- Flammability rating: UL 94 HB.
- Compliance: IEC 61076-2-103.
- Protection class: IP40.
- Dielectric strength: 1.5KVDC.
- Rated current: 10A per contact.
- Rated voltage: < 50V.
- Lifetime: > 1000 mating cycles.
- Maximum wire size: 16AWG (1.5mm²).
- Temperature range: -30°C to +80°C.
Applications
- Professional audio equipment.
- Consumer electronics.
- Live sound setups.
- Studio installations.
- Professional Audio Equipment
- Consumer Electronics
- Live Sound Systems
- Studio Installations
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Gender: Plug
- No. of Contacts: 4
- Connector Mounting: Cable Mount
- Contact Plating: Silver Plated
- Connector Body Material: Metal
- Strain Relief Material: Polyacetal (POM)
- Insert Material: Polyamide (PA 6.6 30% GR)
- Shell Material: Zinc Die-Cast (Black Chromium Plated)
- Weight: 200g
