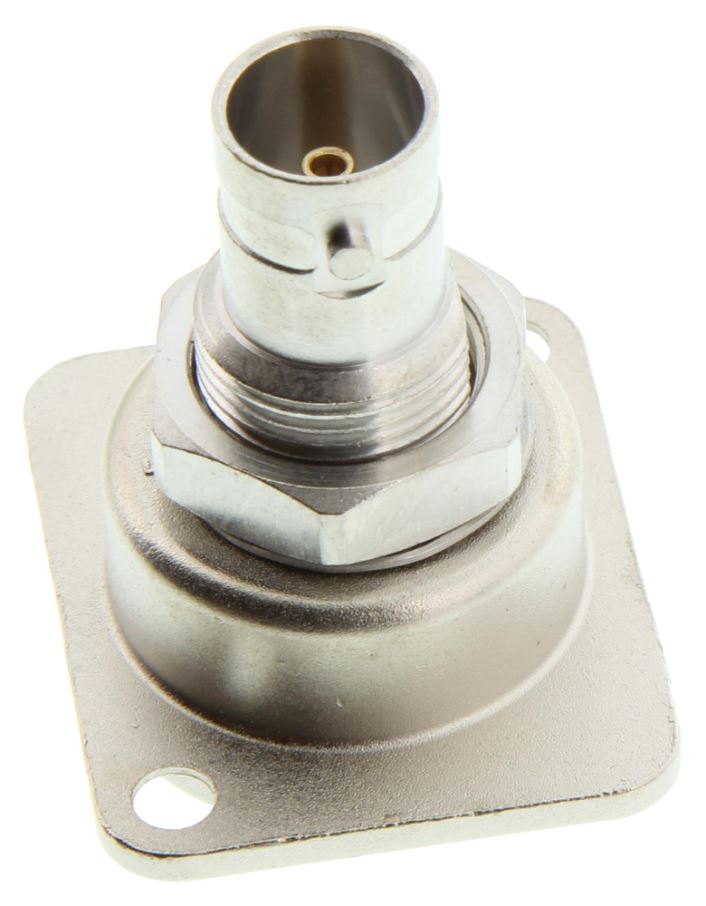

NEUTRIK 75 Ohm BNC Socket to Socket Panel Mount Adaptor
NEUTRIK BNC socket adaptor with 75 Ohm impedance, gold-plated contacts, and rugged D-shell housing for HD signals.
The NEUTRIK NBB75DFG is a high-performance BNC female chassis connector designed for 75 Ohm applications, ensuring optimal signal integrity for HD, SDI, video, AES/EBU, composite, YUV, RGB, RGBH, and RGBHV signals.
Constructed with a machined brass connector body and gold-plated cage-type centre contacts, this adaptor provides a rugged and non-abrasive connection, making it ideal for long-term use. The D-shaped zinc die-cast housing with nickel chrome plating offers enhanced durability and flush mounting for protection against damage.
Key Features:
- True 75-Ohm design for high-definition signal requirements
- PTFE insert and polyacetal (POM) shell for superior insulation
- Front mounting for easy installation
- Bayonet locking mechanism for secure connections
- Rated for >1000 mating cycles ensuring long-term reliability
- Temperature range: -30°C to +85°C
- Rated voltage: <50V
- Dielectric strength: 1.5KVDC
Applications:
- RF communications
- Broadcast and video equipment
- Professional AV installations
- Digital audio and signal processing
This NEUTRIK BNC adaptor is a robust and high-quality solution for professional connectivity, offering excellent performance in demanding environments.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- RF communications
- Broadcast equipment
- Professional AV installations
- Digital audio systems
- Connector Type: BNC Coaxial
- Connector Body Style: Straight Bulkhead Jack
- Impedance: 75 Ohm
- Contact Material: Brass
- Contact Plating: Gold Plated Contacts
- Connector Mounting: Bulkhead Mount
- Shell Material: Zinc die-cast with nickel chrome plating
- Insulation: PTFE insert and polyacetal (POM) shell
- Mounting: Front mounting
- Mating Cycles: >1000 cycles
- Temperature Range: -30°C to +85°C
- Rated Voltage: <50V
- Dielectric Strength: 1.5KVDC
- Weight: 100g
