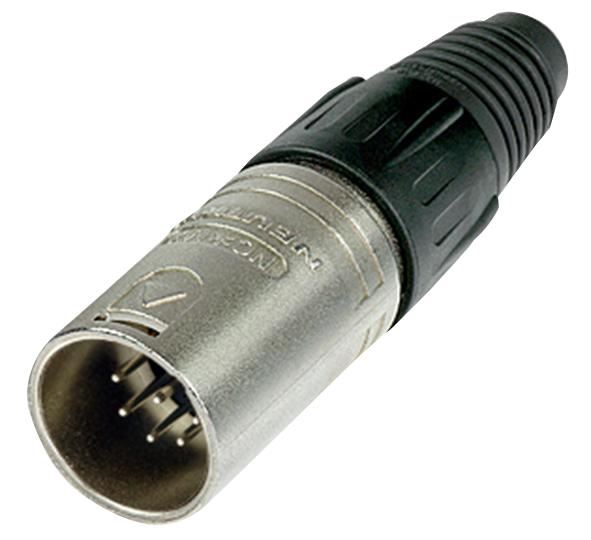

NEUTRIK NC7MX 7-Pin XLR Male Plug
Durable NEUTRIK NC7MX 7-pin XLR male plug for professional audio & electronics. Silver-plated contacts, IP40 rated.
The NEUTRIK NC7MX is a high-quality 7-pole XLR male cable connector, designed for professional audio and consumer electronics applications. Its industry-standard design ensures compatibility and reliability in demanding environments. The connector features a compact yet robust build, with a sturdy die-cast shell and a fibreglass-reinforced hard plastic insert for enhanced durability.
Key Features
- Easy assembly with only 4 parts and no screws required.
- Chuck-type strain relief provides secure clamping for cables with outer diameters ranging from 3.5mm to 8mm.
- Rubber gland boot offers high protection against bending stresses, ensuring longevity in flexible applications.
- Coloured rings and boots available for easy coding and marking in multi-cable setups.
Technical Specifications
- Contact resistance: ≤3mΩ
- Rated voltage: <50V
- Rated current per contact: 5A
- Maximum wire size: 18AWG (1mm²)
- Mating cycles: >1000
Materials & Certifications
- Contacts: Silver-plated brass for optimal conductivity.
- Boot: Polyurethane for flexibility and durability.
- Insert material: Polyamide for strength.
- Shell & latch lock: Zinc die-cast with nickel plating.
- Compliance: UL ECBT2.E135070 certified, UL94 HB flammability rating, IP40 protection class, and IEC 61076-2-103 compliant.
- Temperature range: -30°C to 80°C.
Applications
- Professional audio equipment
- Consumer electronics
Designed for long-lasting performance, the NEUTRIK NC7MX is a reliable choice for secure and high-quality audio connections.
- No. of Contacts: 7
- Gender: Plug
- Connector Mounting: Free Hanging
- Contact Plating: Silver-Plated Brass
- Connector Body Material: Metal (Zinc Die-Cast)
- Strain Relief: Chuck-Type
- Boot Material: Polyurethane
- Insert Material: Polyamide
- Cable Outer Diameter Range: 3.5mm to 8mm
- Contact Resistance: ≤3mΩ
- Rated Voltage: <50V
- Rated Current: 5A per Contact
- Wire Size: 18AWG (1mm²)
- Mating Cycles: >1000
- Flammability Rating: UL94 HB
- Protection Class: IP40
- Temperature Range: -30°C to 80°C
- Weight: 30g
