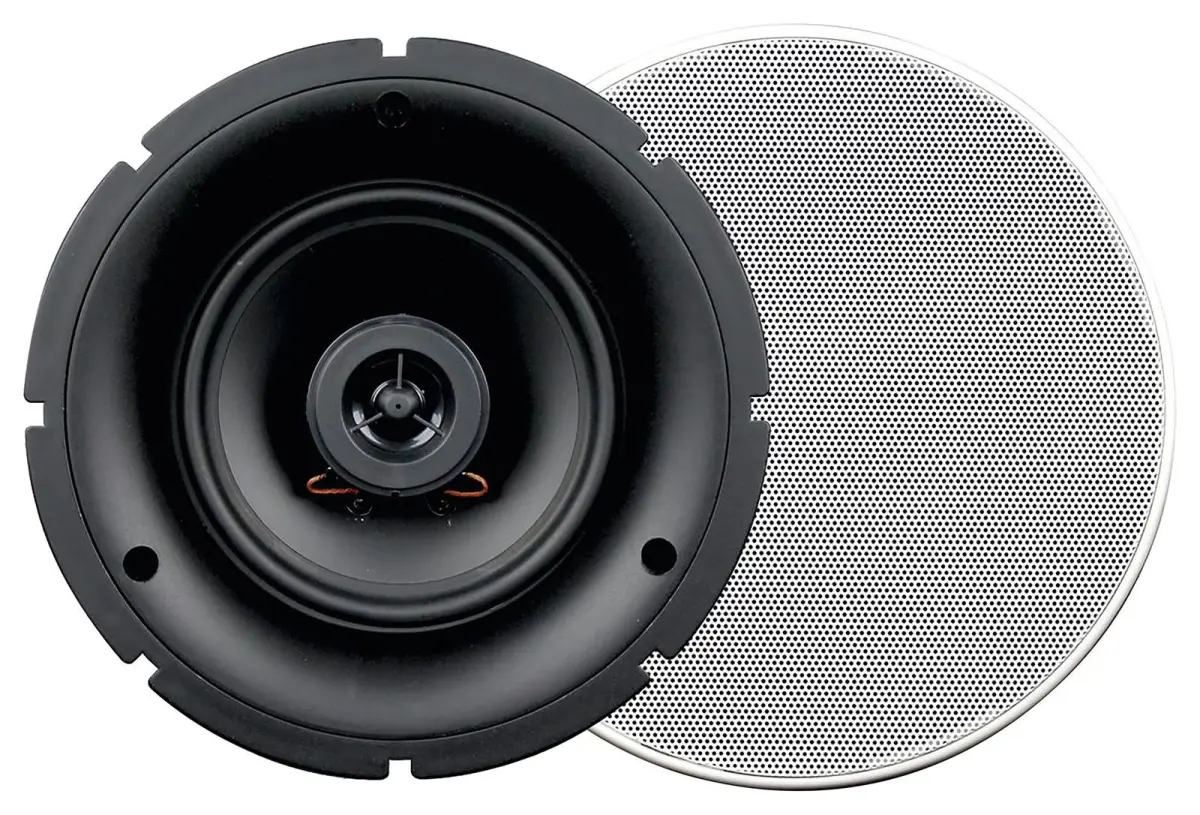

OMNITRONIC CSX Series 2-Way Coaxial Ceiling Speaker 5.25-inch 100V 12W RMS

The OMNITRONIC CSX Series 2-Way Coaxial Ceiling Speaker offers exceptional sound clarity, making it the ideal solution for public address systems and background music in a variety of indoor environments. Engineered for reliability and performance, its coaxial design ensures a coherent sound field from a single point source, delivering both crisp high frequencies and rich mid-range tones.

A key feature is the swivelling tweeter, which allows the high-frequency driver to be aimed for optimal sound dispersion, ensuring clear speech intelligibility and uniform music coverage throughout the space. The cabinet is constructed from robust ABS (Acrylonitrile Butadiene Styrene), providing a scratchproof and shockproof enclosure that is built to last in demanding installations.

Designed for easy installation, this speaker integrates seamlessly into standard ceiling cavities. It is specifically built for 100V public address systems and features a built-in transformer with power tapping options of 4W, 8W, and 12W RMS, selectable via a switch for flexible system configuration. This makes it suitable for zones requiring different volume levels.

Specifications & Performance

• Speaker Drivers: Features a 5.25-inch woofer for solid mid-bass and a 0.5-inch calottes high-frequency driver.
• Power Handling: Rated at 12W RMS on a 100V line, with a programme power of 50W and a 25W RMS rating at 8 Ohms.
• Sensitivity & Output: High 88dB sensitivity ensures efficient operation, achieving a maximum sound pressure level (SPL) of 100dB on a 100V line.
• Frequency Response: Delivers a broad frequency range from 50Hz to 20kHz, covering everything from deep speech to the full spectrum of background music.
• Dimensions & Weight: Compact design with dimensions of 202mm in diameter and a depth of 94mm. It weighs a substantial 1.33kg, indicative of its robust build quality.<br
