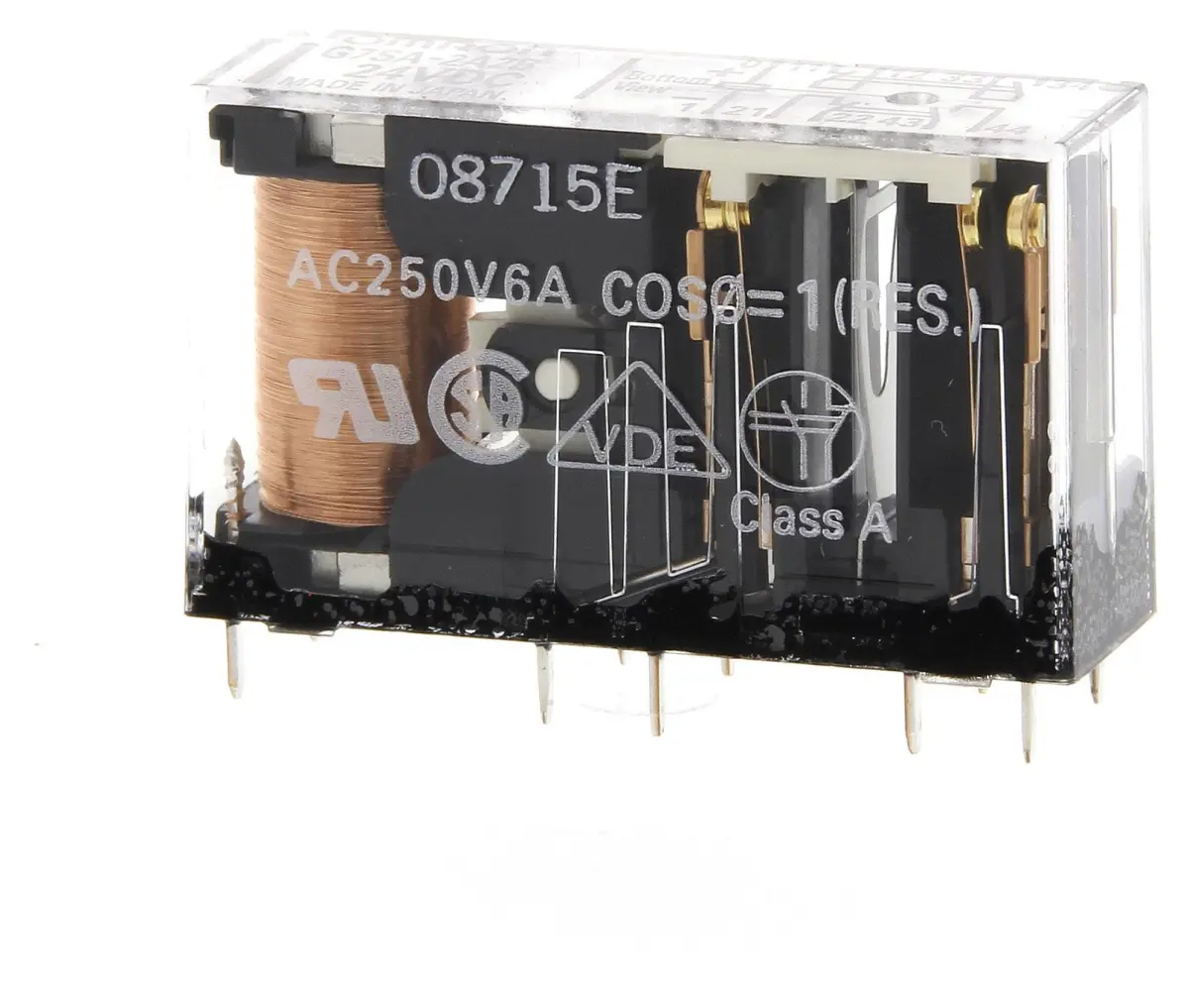

OMRON G7SA Series Safety Relay, 5PST-NO, SPST-NC, 24V DC, 6A
OMRON G7SA safety relay, 24V DC coil, 6A contacts, 5PST-NO/SPST-NC. Through-hole, PC pin terminals for industrial safety circuits.
The OMRON G7SA Series Safety Relay is a reliable, through-hole mounted relay designed for safety-critical applications. With a 5PST-NO (normally open) and SPST-NC (normally closed) contact configuration, this relay provides secure switching for loads up to 6A. The coil operates at 24V DC, ensuring compatibility with typical industrial control voltages.
Engineered with Silver and Gold contacts, the relay delivers excellent conductivity and resistance to wear, making it suitable for low-level switching as well as general-purpose use. The PC Pin terminals and through-hole mounting allow for straightforward PCB integration, while the compact dimensions (43mm height, 33mm width, 15mm depth) save valuable board space.
Key Features
- 5PST-NO + SPST-NC contact arrangement for versatile safety circuits
- 24V DC coil for robust actuation
- 6A contact current handling capability
- 250V AC / 30V DC contact voltage ratings
- Silver and Gold contact material for reliable switching
- PC Pin terminals for secure soldering
Specifications
- Coil Voltage: 24V DC
- Contact Configuration: 5PST-NO, SPST-NC
- Product Range: G7SA Series
- Relay Mounting: Through Hole
- Contact Current: 6A
- Relay Terminals: PC Pin
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Contact Material: Silver, Gold
- Height: 43 mm
- Width: 33 mm
- Depth: 15 mm
- Weight: 25 grams
This safety relay is an essential component for ensuring operational safety in industrial machinery and control systems, offering both reliability and performance in a compact form factor.
