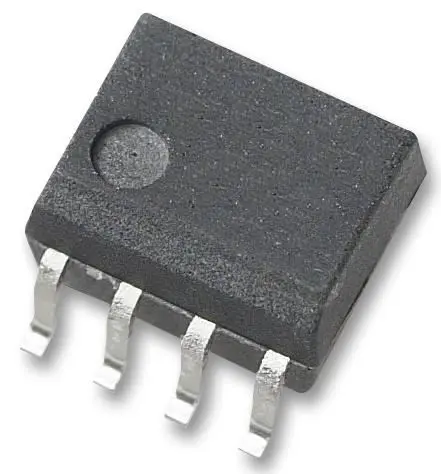

Onsemi 2 Channel Optocoupler SOIC-8 60mA 2.5kV

Onsemi 2 Channel Optocoupler is an SOIC-8 device rated at 60mA maximum forward current and 2.5kV isolation, providing electrical isolation between input and output circuits.

The optocoupler couples signals between an input light-emitting diode and an output phototransistor, completely isolating the two sides so that high voltages or electrical noise do not interfere with low-voltage control systems. Its transistor output helps protect microcontrollers and logic circuits from voltage spikes or ground loops commonly found in industrial environments.

Overview

Housed in a compact SOIC (Small Outline Integrated Circuit) package with 8 pins, the device features two independent channels within a single, space-saving component. It offers a minimum current transfer ratio (CTR) of 100%, which indicates efficient conversion of the input optical signal to an output electrical current, and a collector-emitter voltage rating of 70V.

Key Features

• 2 channels for isolating two independent signal paths
• Compact SOIC-8 package
• Maximum forward current: 60mA
• Isolation voltage: 2.5kV
• Minimum CTR: 100%
• Collector-emitter voltage: 70V

Applications

The device is suited to power supply feedback loops, motor drive circuits, and communication interfaces where electrical isolation is required. It is also applicable to industrial control systems, medical equipment, telecommunications infrastructure, and consumer electronics that require protection from transient voltages.

Dimensions

Height 4.3 mm, width 3.3 mm, depth 1.5 mm, weight 0.159 g.

Choose the Onsemi 2 Channel Optocoupler when a compact, dual-channel isolation component with a 2.5kV isolation rating is required for sensitive electronic circuits.
