Peak Atlas SCR100 Thyristor and Triac Analyser

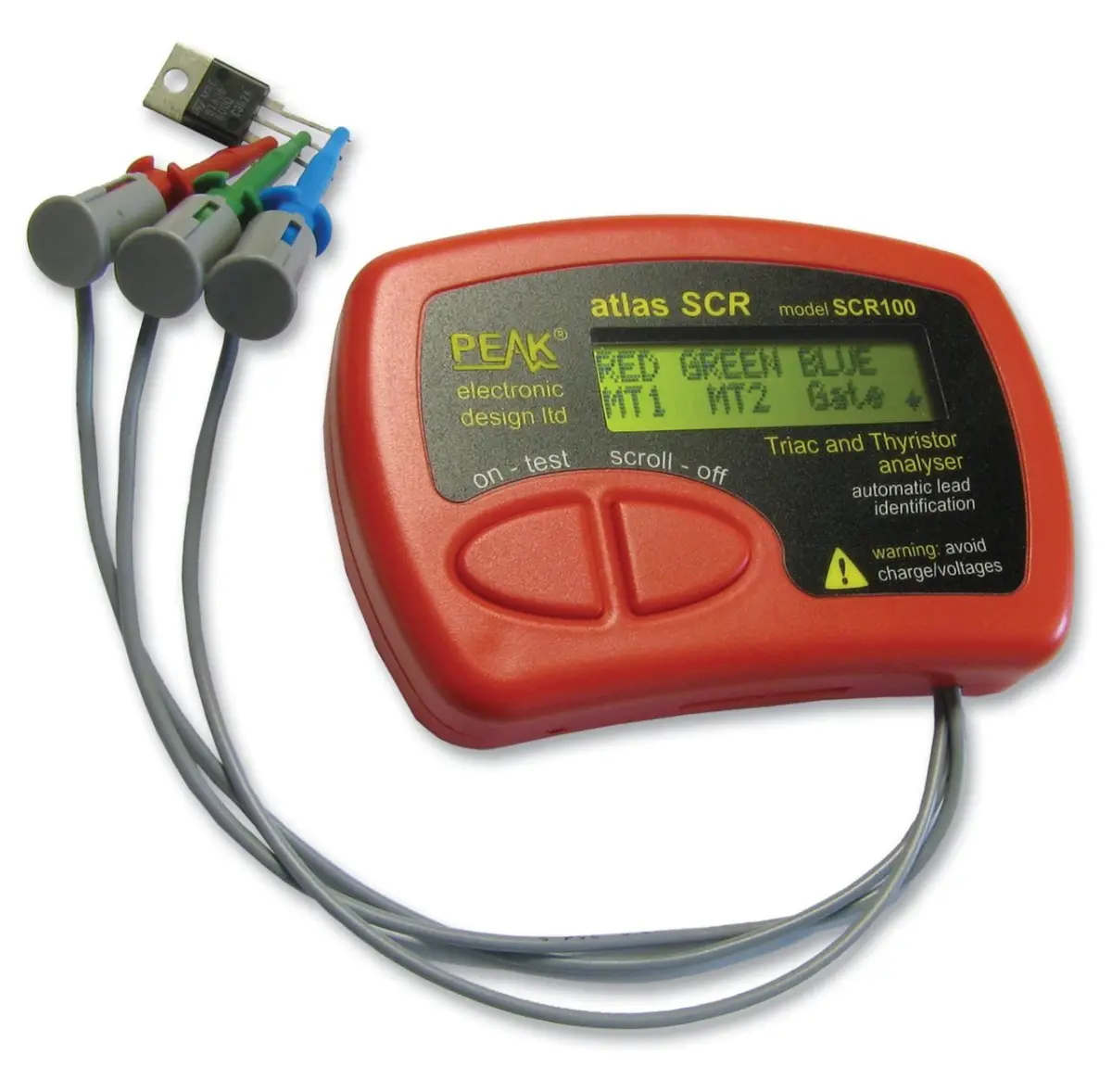

The Peak Atlas SCR100 is a professional, handheld analyser designed for the rapid identification and testing of a wide range of thyristors and triacs. It simplifies the diagnostic process by allowing you to connect the test probes in any orientation before pressing the test button. The device instantly identifies the component type, determines the correct pinout, categorises its gate sensitivity, and measures the gate voltage drop.

One of its standout features is the autoranging gate current, which adjusts from 100μA to 100mA. Crucially, it maintains consistent load test conditions of 12V at 100mA, ensuring reliable results regardless of the battery's charge state. This makes it an indispensable tool for electronics engineers, technicians, and hobbyists involved in repair, prototyping, or quality assurance.

Key Features & Benefits

• Automatic Identification: Instantly determines whether the component is a thyristor or a triac.
• Hassle-Free Connection: Automatic pinout identification means probes can be connected any way round, saving time and preventing errors.
• Comprehensive Gate Analysis: Displays gate sensitivity across a broad range (100μA to 100mA) and measures the gate voltage drop.
• Stable Testing: Provides consistent 12V, 100mA load test conditions, even with a low battery, for dependable measurements every time.
• Broad Compatibility: Supplied with probes that connect to popular package styles including TO220, TO3, TO92, and bolt-type components.

The compact and robust unit is easy to use and comes complete with everything needed to start testing immediately. Its design prioritises accuracy and user convenience, making component verification and fault-finding a straightforward task.
