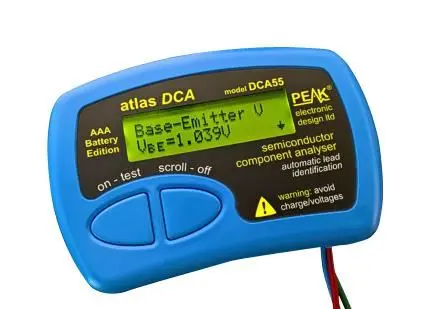

Peak Atlas Semiconductor and IC Analyser Kit

The Peak Atlas Semiconductor and IC Analyser Kit automatically identifies a wide range of semiconductor components with a measurement resolution of 1mV. Designed for electronics engineers, technicians, and hobbyists, it saves time by determining the component type and pinout without guesswork.

Key Features

• Automatic Identification: Determines the component type, such as transistor, MOSFET, JFET, diode, or LED, and its correct pinout, including components with unknown or faded markings.
• Comprehensive Measurements: Reports transistor gain (hFE), PN junction characteristics, gate threshold voltages, forward voltage drops, and leakage current.
• Germanium and Silicon Detection: Distinguishes between Germanium and Silicon junctions.
• Measurement Resolution: Provides readings at a resolution of 1mV for sensitive components.
• Broad Component Support: Tests bipolar transistors, MOSFETs, JFETs (identifies the gate pin), diodes, LEDs (including bi-colour 2 and 3-lead types), thyristors, TRIACs, and more.
• Simple Operation: Connect the component in any orientation and press the test button. Auto power-on/off helps conserve battery life.

Display Output

After testing, the scrollable display presents concise pages showing the component type and special features, the identified pinout configuration, and measured parameters such as gain, leakage current, and voltage drops.

Design and Specifications

The ultra-slim, compact form factor makes the kit portable for bench or field use. The device measures 103 mm x 72 mm x 20 mm (W x H x D) and weighs 165 g. The specified operating temperature range is 10°C to 40°C.

Applications

The analyser is suited to testing semiconductor components on the bench or in the field, including bipolar transistors, MOSFETs, JFETs, diodes, LEDs, thyristors, and TRIACs.
