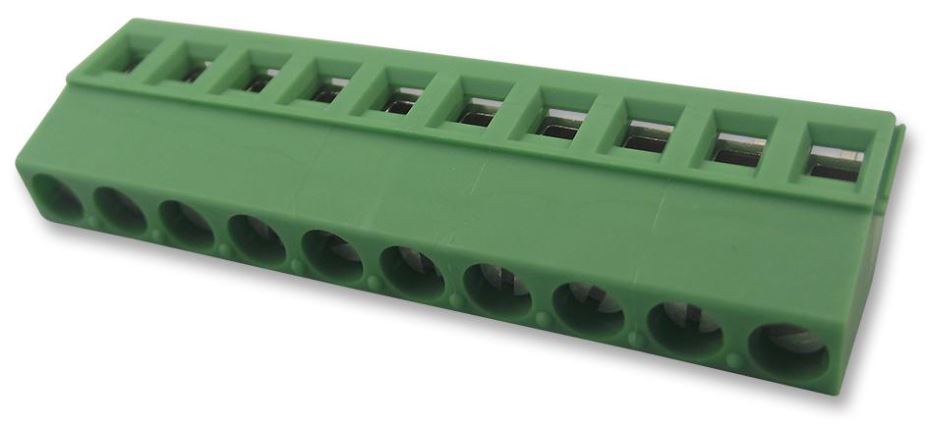

Phoenix Contact MKDS 1.5/10-5.08 Terminal Block, 10-Way, 5.08mm
Phoenix Contact MKDS terminal block, 10-way, 5.08mm pitch – ideal for industrial PCB connections with screw terminals.
The Phoenix Contact MKDS 1.5/10-5.08 Terminal Block is a robust and reliable solution for secure PCB connections in industrial applications. Constructed with a durable polyamide insulator and tin-plated solder contacts, this terminal block ensures excellent conductivity and long-term durability. Its M3 screw connection provides a secure and stable wire clamping mechanism, suitable for a wide range of wire sizes.
Designed with fully developed contact geometries and surfaces, this terminal block offers a space-saving and safe connection solution. The 7mm stripping length and A1 internal cylindrical gauge ensure quick and easy installation while maintaining high performance. Additionally, it boasts a UL94V-0 flammability rating, guaranteeing fire safety in demanding environments.
Applications
This terminal block is ideal for industrial settings where stable and efficient electrical connections are crucial. Its 5.08mm pitch spacing and 10-way configuration make it perfect for compact PCB designs requiring multiple connections.
Specifications
- Wire Size Range: 26AWG to 14AWG (0.14mm² to 2.5mm²)
- Wire Connection Method: Screw (M3)
- Rated Current: 15A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Product Range: MKDS
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Industrial PCB applications
- Electrical enclosures
- Control panels
- Automation systems
- Pitch Spacing: 5.08mm
- No. of Positions: 10 Ways
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 14AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 15A
- Rated Voltage: 300V
- Block Orientation: Through Hole Right Angle
- Product Range: MKDS
- Flammability Rating: UL94V-0
- Weight: 10g
Always follow local regulations and product guidance.
