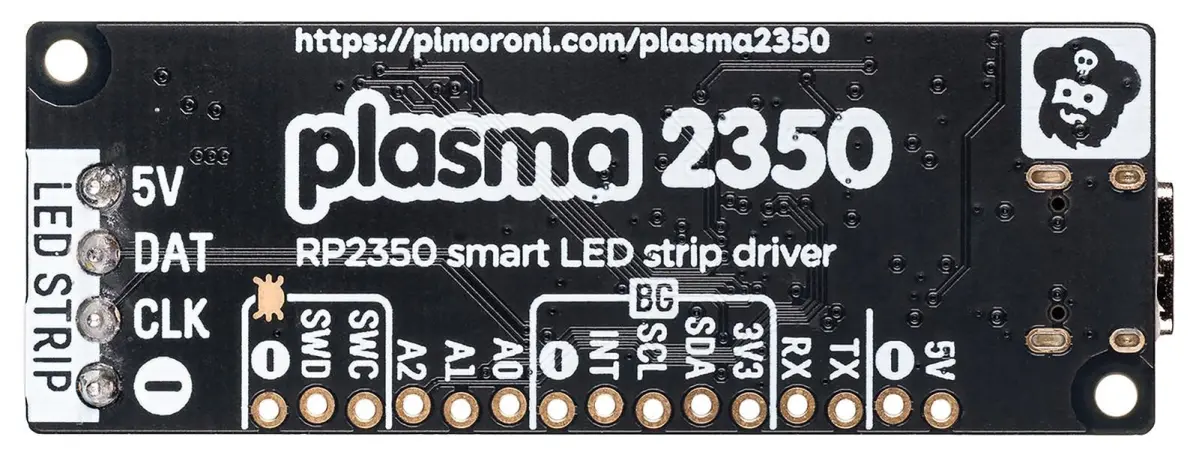

Pimoroni Plasma 2350 LED Controller Starter Kit for WS2812/APA102

The Pimoroni Plasma 2350 is an all-in-one, USB-C powered controller designed for WS2812/Neopixel and APA102/Dotstar addressable LED strips. Easy to program via USB-C, this board can draw up to 3A of power, enabling it to light multiple LEDs simultaneously. The board features a user programmable button, a dedicated reset button, and an onboard RGB LED, providing flexible control and feedback.

A handy QW/ST connector makes it simple to plug in Qwiic or STEMMA QT breakouts, expanding your project's capabilities without complex wiring. This starter kit includes LED stars and a USB-C cable, so you can start lighting up your projects straight away. No soldering is required as the board is supplied fully assembled.

Key Features

• Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 4MB of QSPI flash supporting XiP
• Compatible with 5V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs
• Screw terminals for attaching LED strips
• USB-C connector for power and programming (3A max)
• Qw/ST (Qwiic/STEMMA QT) and SP/CE connectors
• Onboard RGB LED
• Reset, BOOT, and a user button (BOOT button can also be used as a user button)
• Programmable with C/C++ or MicroPython
• Supplied fully assembled (no soldering required)
• Comes complete with LED stars and a handy USB-C cable

Specifications

• Dimensions (HxWxD): 12x22x61mm
• Box Contents: Plasma 2350 board, 10m RGB star wire, and USB-C cable

Whether you're a hobbyist or a professional, this starter kit provides a robust and user-friendly platform for creating stunning LED displays and interactive lighting projects.
