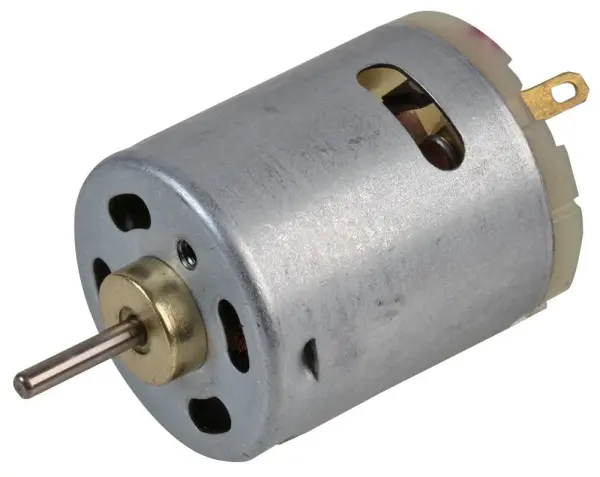

PRO-ELEC 12-24V 18000RPM High Torque Brushed DC Motor

This PRO-ELEC Brushed DC Motor offers a compact and high-torque solution for a wide range of small electronics applications. Designed with a 5-pole configuration, it provides reliable and efficient performance across a wide operating voltage range of 12V to 24V, with a nominal voltage of 18V. Its small size makes it exceptionally versatile, fitting easily into portable devices and DIY electronics kits.

The motor features a counter-clockwise rotation and achieves an impressive no-load speed of 18,000 RPM. It can be used as a standalone unit or securely mounted onto a base such as a PCB or external enclosure using the two M2.6 tapped mounting holes. With a stall torque of 55g/cm and a rated load of 65g/cm, this motor is well-suited for demanding tasks in confined spaces.

Key Specifications

• Operating Range: 12-24V DC (Nominal 18V)
• No Load Speed: 18,000 RPM ±10%
• Load Speed: 14,350 RPM ±8%
• No Load Current: 0.32A
• Current at Maximum Efficiency: 1.3A
• Rated Load (with fan): 65g/cm
• Stall Torque: 55g/cm (minimum)
• Motor Dimensions (LxØ): 32.5 x 27.5mm
• Shaft Dimensions (LxØ): 12.8 x 2.3mm

Whether you are building robotics, designing cooling systems, or working on agricultural and hobby education projects, this high-performance DC motor delivers the power and precision required.
