PRO SIGNAL 1080p HDMI over Cat5e/Cat6 Extender with IR, 120m
Extend HDMI signals up to 120m with PRO SIGNAL's 1080p HDMI over Cat5e/Cat6 extender, featuring IR control. Ideal for AV distribution.
The PRO SIGNAL 1080p HDMI over Cat5e/Cat6 Extender with IR allows you to effortlessly extend a Full HD HDMI signal over a single Cat6 network cable up to 120 metres, with seamless IR control functionality. This extender is an ideal solution for distributing high-definition audio-visual signals in various settings, including home theatres, commercial installations, and educational environments.
Key Features
- Supports resolutions up to 1080p Full HD @60Hz for crystal-clear video quality.
- Offers a maximum cable run of 120m with Cat6 or 100m with Cat5e, providing flexible installation options.
- Includes IR Passback support (20-60kHz frequency), enabling remote control of the source device from the display location.
- Compliant with HDMI 1.3 and HDCP 1.4 standards for reliable connectivity.
- Features power and activity status LED indicators for easy monitoring.
- Equipped with an easy-access reset button on both the transmitter and receiver units.
- Constructed with compact and durable alloy housings for long-lasting performance.

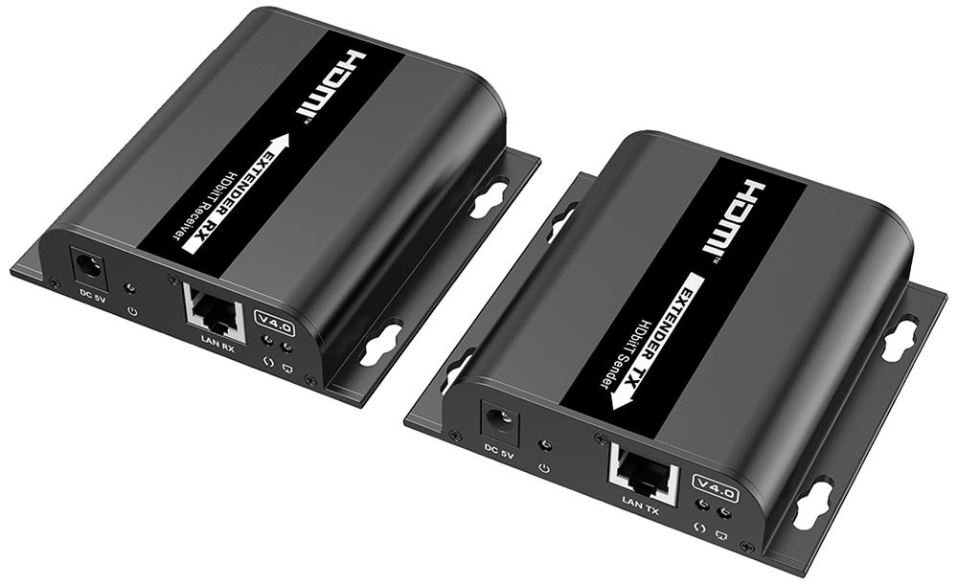

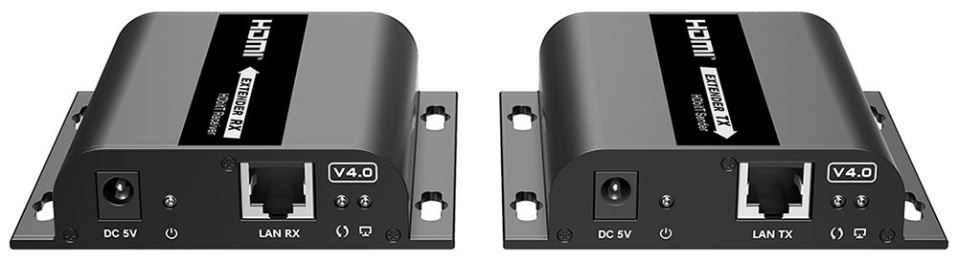

- Offers straightforward connections with HDMI in, RJ45 out, and IR out on the transmitter, and RJ45 in, HDMI out, and IR in on the receiver.
Technical Specifications

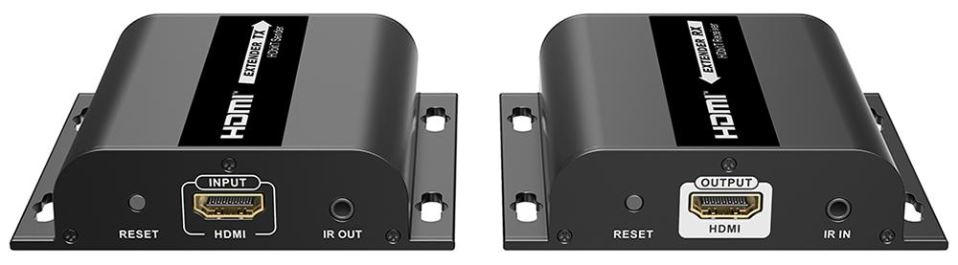

- Transmitter Connections: HDMI input, RJ45 output, IR output.
- Receiver Connections: RJ45 input, HDMI output, IR input.
- Maximum Input/Output Cable Length: 5m.
- Dimensions (HxWxD): 24x97x94mm (each unit).
Package Contents
- 1x Transmitter
- 1x Receiver
- 2x AC adaptors
- 2x IR cables
- 1x User guide
The PRO SIGNAL 1080p HDMI Extender is a versatile and reliable solution for extending high-definition signals over long distances with minimal signal loss.
- Home theatres
- Commercial AV setups
- Educational environments
- Conference rooms
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Resolution Support: 1080p Full HD @60Hz
- Max Cable Run: 120m (Cat6), 100m (Cat5e)
- IR Passback Frequency: 20-60kHz
- HDMI Compliance: HDMI 1.3, HDCP 1.4
- Cable Length Limit: 5m (input/output)
- LED Indicators: Power and activity status
- Reset Button: Both transmitter and receiver
- Housing Material: Alloy
- Transmitter Connections: HDMI in, RJ45 out, IR out
- Receiver Connections: RJ45 in, HDMI out, IR in
- Dimensions (each unit): 24x97x94mm (HxWxD)
