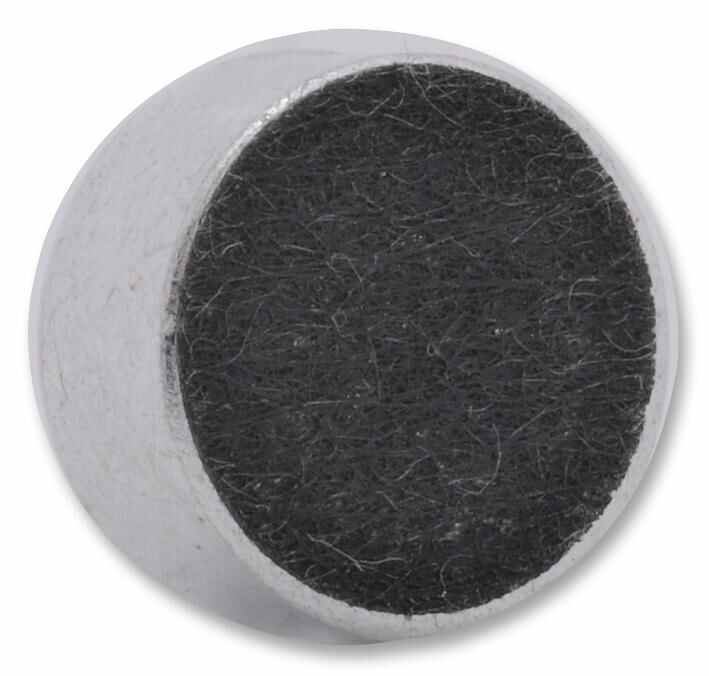

Pro Signal 9.7mm Omnidirectional Electret Condenser Microphone
Compact Pro Signal electret condenser microphone with omnidirectional sound capture, 50Hz-16kHz frequency response, and PCB mounting.
The Pro Signal 9.7mm Omnidirectional Electret Condenser Microphone (ABM-707-RC) is a high-quality miniature microphone designed for PCB mounting applications. This compact, low-profile microphone features an electret condenser design with excellent omnidirectional sound capture capabilities.
With an operating voltage range of 2-10V and a current rating of 0.5mA, this microphone offers versatile compatibility with various electronic circuits. Its impressive sensitivity of -41dB ensures clear audio capture, while the wide frequency response (50Hz-16kHz) delivers balanced sound reproduction across vocal and instrumental ranges.
Key Features
- Compact 9.7mm diameter electret condenser design
- Omnidirectional pickup pattern for 360° sound capture
- PCB mounting pins for easy installation
- Wide operating voltage range (2-10V DC)
- Low current consumption (0.5mA)
- High sensitivity (-41dB)
- Broad frequency response (50Hz-16kHz)
- Solder-pad connection for reliable mounting
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Audio equipment
- Consumer electronics
- Portable devices
- PCB-mounted applications
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Transducer Type: Electret Condenser
- Directivity: Omnidirectional
- Frequency Response: 50Hz-16kHz
- Sensitivity: -41dB
- Supply Voltage: 2-10V DC
- Current Rating: 0.5mA
- Mounting Type: PCB Mount
- Diameter: 9.7mm
- Connection: Solder-pad
- Weight: 800g
