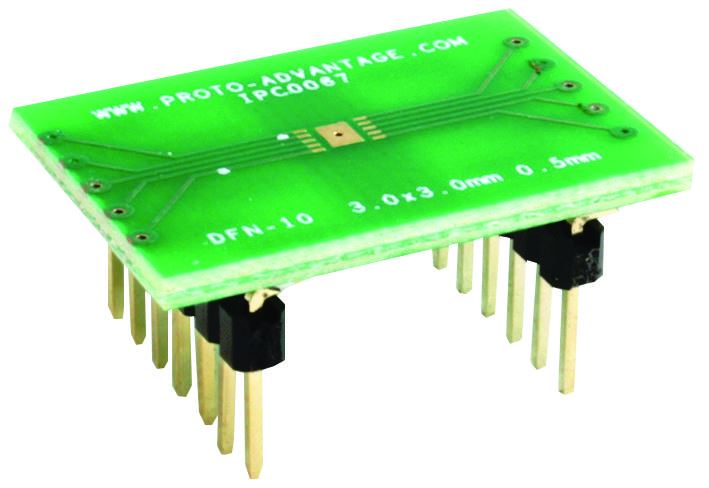

PROTO ADVANTAGE DFN-10 to DIP-14 SMT Adapter
Professional SMT adapter board with Ni/Au plating for converting DFN-10 to DIP-14 footprints in electronics prototyping.
The PROTO ADVANTAGE DFN-10 to DIP-14 SMT Adapter is a high-quality printed circuit board designed for converting surface mount footprints to through-hole connections. Its dual-sided design features:
- Top Side: Surface mount connector footprint for DFN-10 packages
- Bottom Side: Pads for two single row surface mount vertical headers
Constructed from durable 1.5mm thick FR4 epoxy fibreglass, this adapter board features double-sided 35µm copper layers with chemical nickel/gold plating and solder stop masks for reliable performance. The 1.0mm hole diameter ensures compatibility with standard through-hole components.
Package Includes:
- Printed circuit board (PCB)
- Surface mount pin headers
- 2x assembly spacers
With compact dimensions of 25.4mm height and 17.78mm width (1.6mm thickness), this professional-grade adapter simplifies prototyping and circuit development by bridging surface mount and through-hole technologies.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Prototyping PCBs
- SMD to DIP conversion
- Electronics development
- Circuit testing
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Material: FR4 epoxy fibreglass
- Board Thickness: 1.5mm
- Copper Layer: Double-sided 35µm
- Surface Finish: Chemical Ni/Au plating
- Solder Stop Masks: Both sides
- Hole Diameter: 1.0mm
- Board Type: SMD Contacts
- External Height: 25.4mm
- External Width: 17.78mm
- Thickness: 1.6mm
- Weight: 10g
