Proto-Advantage Dual Row 1.27mm 20-Pin Male Header to DIP-20 Adaptor

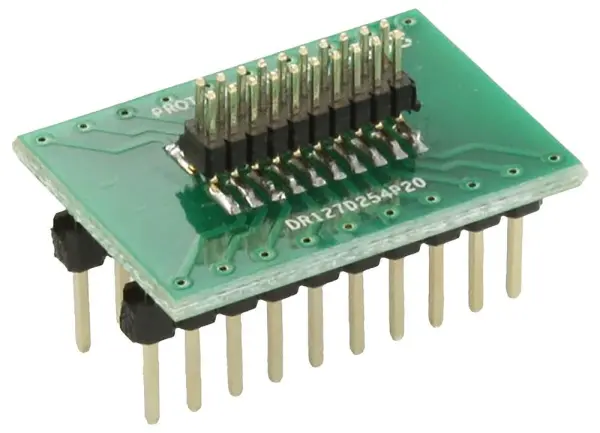

The Proto-Advantage Dual Row 1.27mm 20-Pin Male Header to DIP-20 Adaptor provides a reliable solution for converting a 20-pin male header to a standard 300mil DIP-20 footprint. This adapter comes pre-assembled with top and bottom headers installed, saving valuable time and effort during prototyping and development.

Key Features

• Gold-plated dual row surface mount vertical male header on the top side.
• Two gold-plated single row surface mount vertical male headers on the bottom side.
• DIP pin type: wire wrap pins (0.64mm square) for secure connections.
• PCB dimensions: 700mils x 1000mils x 62.5mils (17.78mm x 25.4mm x 1.6mm).
• FR-4 UL94V-0 PCB construction ensures durability and flame resistance.
• Operating temperature range from -40°C to +130°C for versatile use.
• Maximum reflow temperature of +260°C, suitable for standard assembly processes.
• Assembled to IPC-A-610 Class II standards for quality assurance.

Applications

This adaptor is ideal for converting 20-pin male headers to DIP-20, making it perfect for circuit board prototyping, development boards, and electronic testing setups. Its compact design and robust construction ensure reliable performance in various electronic projects.

Specifications

_ Pitch Spacing: 1.27mm _ Pin Count: 20 _ Row Pitch: 0.64mm (wire wrap pins) _ PCB Material: FR-4, UL94V-0 _ PCB Thickness: 1.6mm _ Operating Temperature: -40°C to +130°C _ Reflow Temperature: +260°C (max) _ Assembly Standard: IPC-A-610 Class II _ Weight: 7 grams _ Dimensions (LxWxH): 43mm x 33mm x 15mm
