PROTO ADVANTAGE FPC/FFC SMT 0.5mm 10-Pin DIP Adaptor
Convert 0.5mm FPC/FFC to DIP with this PROTO ADVANTAGE adaptor. FR4 fibreglass, Ni/Au plating, 22.86mm height.
The PROTO ADVANTAGE FPC/FFC SMT 0.5mm 10-Pin DIP Adaptor provides a versatile and reliable solution for converting surface mount connections to DIP format. Constructed from 1.5mm thick FR4 EPOXY fibreglass, this adaptor ensures durability and excellent electrical performance.
The top side of the board features a surface mount connector footprint (0.5mm pitch FPC/FFC), while the bottom side includes pads for two single-row surface mount vertical headers, offering flexibility in circuit design and testing.
Key Features
- Material: FR4 EPOXY fibreglass with 35µm copper layers
- Surface Finish: Chemical Ni/Au plating on both sides for enhanced conductivity
- Solder Stop Masks: Applied to both sides for improved soldering reliability
- Thru-Hole Adaptors: Enables secure through-hole mounting

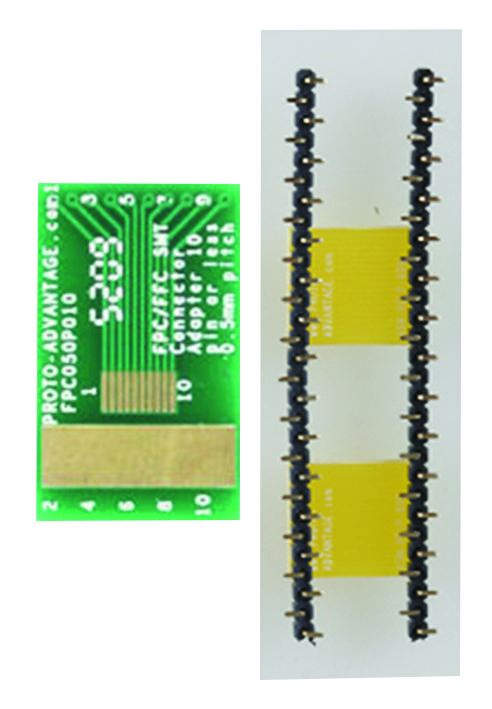

- Included Components: Printed circuit board (PCB), surface mount pin headers, and 2x assembly spacers
- Compact Dimensions: 22.86mm (H) x 13.97mm (W) x 1.6mm (thickness)
Ideal for prototyping and electronics assembly, this adaptor ensures compatibility with 0.5mm pitch FPC/FFC connectors, making it a valuable tool for engineers, hobbyists, and manufacturers seeking precise and efficient circuit connections.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Prototyping electronics
- SMT to DIP conversion
- Circuit testing
- FPC/FFC connector interfacing
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Material: FR4 EPOXY fibreglass
- Board Thickness: 1.5mm
- Copper Layer: 35µm (double-sided)
- Surface Finish: Chemical Ni/Au plating
- Hole Diameter: 1.0mm
- Board Type: SMD Contacts
- External Height: 22.86mm
- External Width: 13.97mm
- Contents: PCB, headers, 2x spacers
- Compatibility: FPC/FFC SMT 0.5mm pitch
- Weight: 10g
