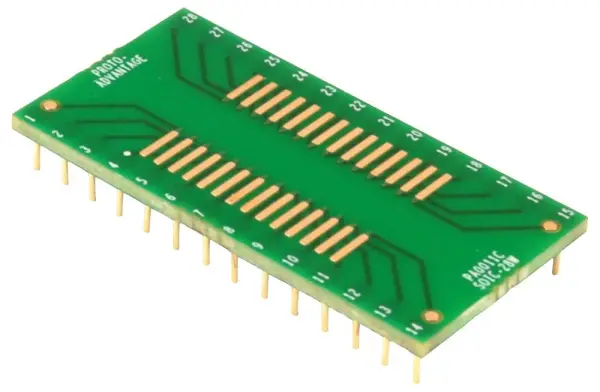

Proto-Advantage SOIC-28 to DIP-28 SMT Adaptor, Compact Series
Compact SOIC-28 to DIP-28 adaptor with gold-plated pins. Ideal for prototyping. FR-4 PCB, 1.27mm pitch.
This Proto-Advantage SOIC-28 to DIP-28 SMT Adaptor, part of the Chip Quik Compact Series, provides a reliable solution for converting surface mount (SMD) packages to through-hole (DIP) mounting, ideal for prototyping, breadboarding, and testing. The adaptor efficiently converts a 28-pin SOIC (300 mil body width, 1.27mm pitch) to a 28-pin DIP (600 mil body width, 0.1-inch pitch), enabling easy integration with standard DIP sockets or perfboards.
Pre-installed gold-plated machine pins (1µm gold over 50µm nickel) ensure excellent conductivity and corrosion resistance, while the pins are securely mounted using a surface mount with partial through-hole technology for precise positioning. The adaptor is built on a high-quality FR-4 UL94V-0 PCB, ensuring durability and flame resistance. This adaptor simplifies your electronic projects by providing a professional, reliable interface between package types, saving time and effort during development.
Product Specifications:
- PCB Dimensions: 1.6 x 17.78 x 35.56mm
- Pin Pitch: 1.27mm (SOIC side), 0.1 inch (DIP side)
- Pin Length: 3mm, Diameter: 0.46mm
- Pin Plating: Gold over nickel
- Operating Temperature: (Not specified in source)
- Product Range: Compact Series
