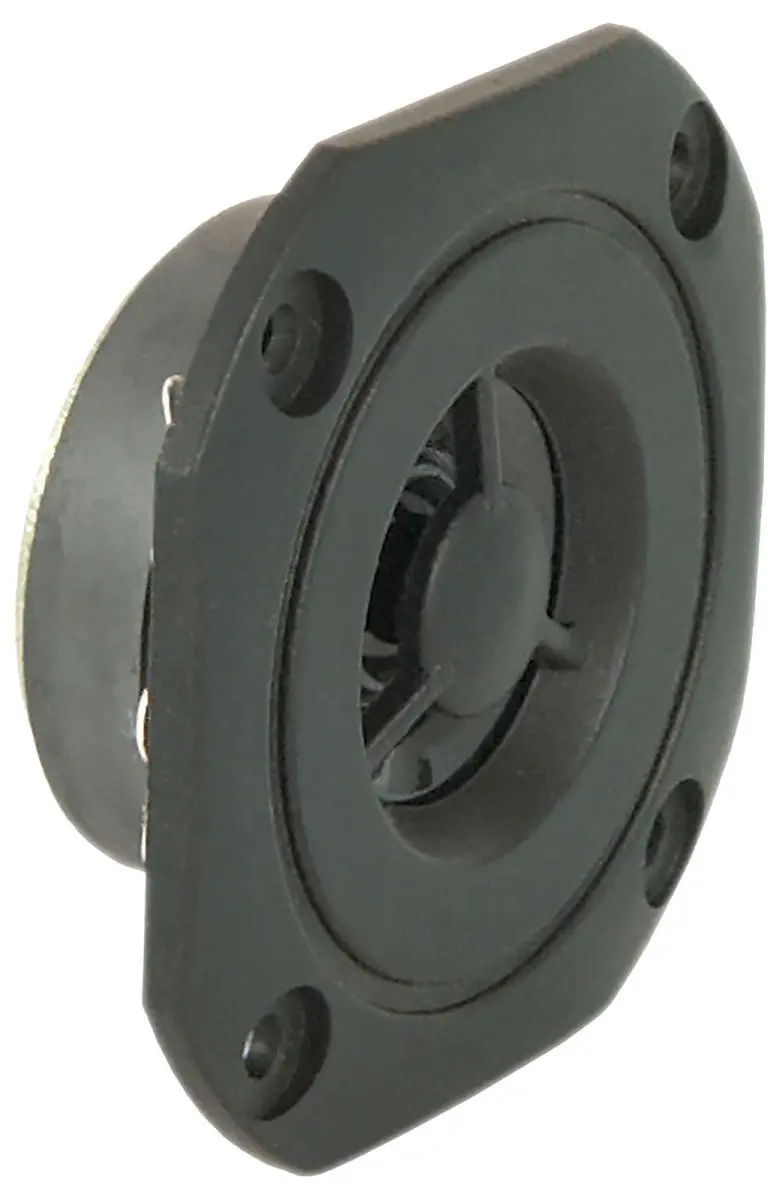

QTX 59mm x 59mm Square Dome Tweeter, 20W RMS

Elevate your audio system with the QTX 59mm x 59mm Square Dome Tweeter. This precision-engineered speaker component is designed to deliver crisp, clear high-frequency sound reproduction, making it an excellent choice for both new installations and as a direct replacement for worn or damaged units in existing setups. Its compact square form factor ensures it can fit seamlessly into a wide variety of enclosures and panel designs.

At the heart of this tweeter is a responsive mylar dome. This material is chosen for its excellent transient response and smooth frequency characteristics, ensuring detailed audio reproduction across its range. The tweeter is built to handle a maximum power of 40W with a continuous RMS power rating of 20W, providing a robust performance margin for demanding audio applications.

Technical Performance

The tweeter boasts a wide frequency response from 3kHz to 20kHz, capturing the full brilliance and sparkle of high-end audio. With an impedance of 8 Ohms, it is compatible with a vast array of amplifiers and audio systems. A key indicator of its efficiency is its sound pressure level (SPL) of 91dB at 1W/1m, meaning it can produce substantial volume with minimal power input.

Quality Construction

Durability and performance are assured through quality components, including a 12.5mm (0.5”) voice coil for precise control and a 28g magnet that provides the necessary magnetic force for accurate driver movement. The overall dimensions of 59mm x 59mm (2.25” x 2.25”) make it a versatile choice for custom audio projects, speaker repairs, or professional sound installations where space is at a premium.

Whether you're building a new pair of bookshelf speakers, upgrading a commercial sound system, or repairing a vintage audio unit, this QTX square dome tweeter offers reliable performance and clear, distortion-free high frequencies.
