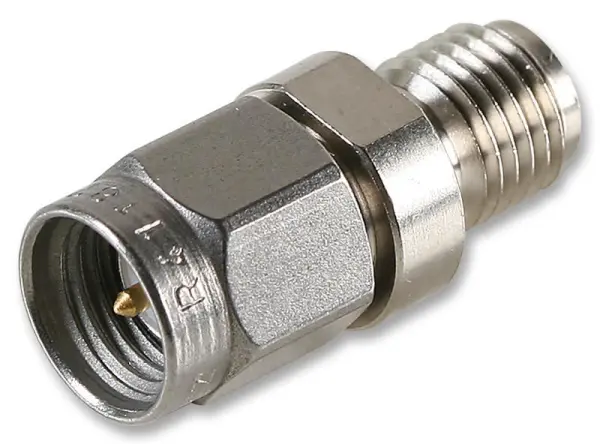

RADIALL SMA Attenuator Plug to Socket 20dB 1W
- SKU
- C3-CN18704
- EAN
- 3552914182541
RADIALL SMA attenuator with 20dB attenuation, DC to 6GHz frequency, and 1W input power. Ideal for aerospace and defence applications.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Aerospace applications
- Defence systems
- Military equipment
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Interface Type: SMA Plug to SMA Jack
- Attenuation: 20dB
- Frequency Range: DC to 6GHz
- Input Power: 1W
- Peak Power: 100W at 25°C
- Impedance: 50ohm
- Body Material: Nickel-plated brass
- Male Centre Contact: Nickel-plated brass
- Female Centre Contact: Cupro beryllium
- Insulator: PTFE
- Gasket: Elastomer silicone
- Standard: MIL-C 39012
- Operating Temperature Range: -40°C to +85°C
- Height: 43 mm
- Width: 33 mm
- Depth: 15 mm
- Weight: 7 grams
- Attenuator Body Material: Brass
- Connector Type: Intra Series Coaxial
- Product Range: Radiall - SMA Attenuators
- SVHC: No SVHC (17-Jan-2023)
