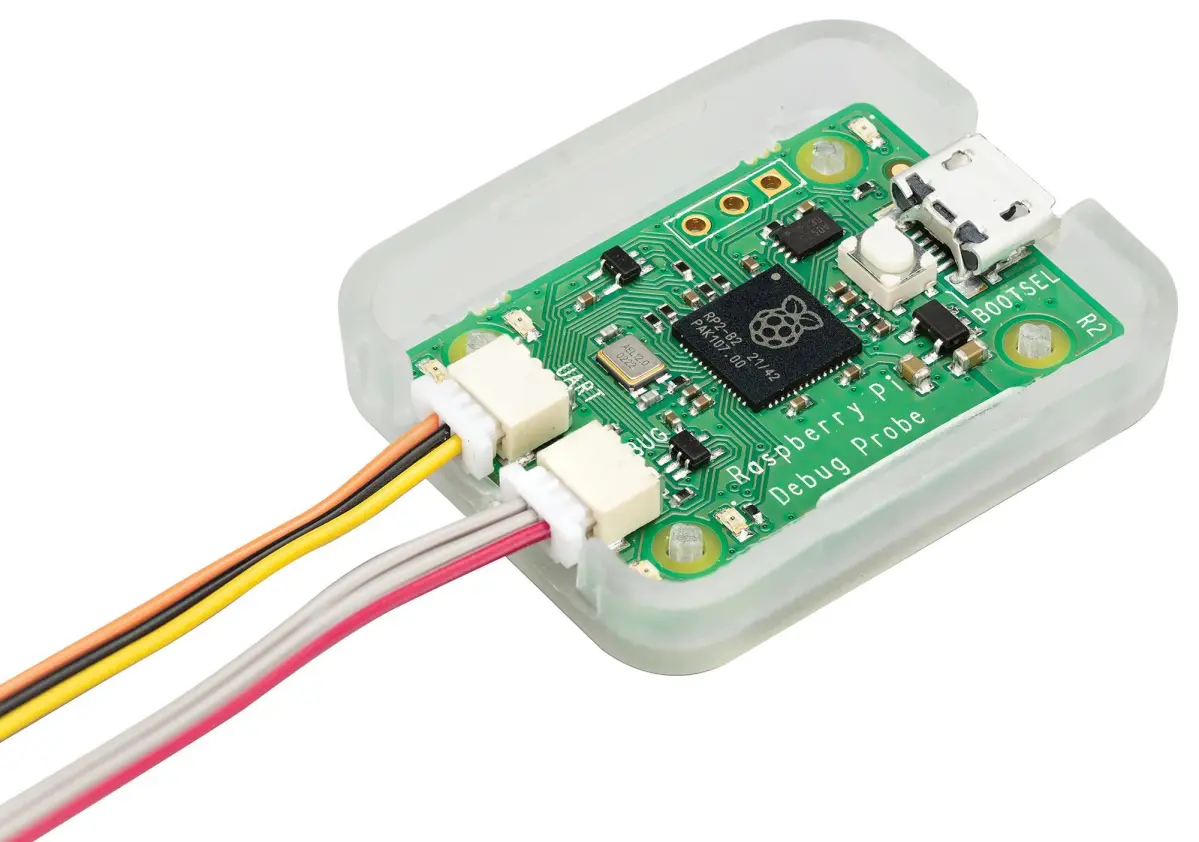

Raspberry Pi Debug Probe

The Raspberry Pi Debug Probe (SC0889) is an all-in-one USB-to-debug solution that provides everything you need for easy, solderless, plug-and-play debugging. It combines a processor serial debug interface and a standard UART interface, both using the Raspberry Pi 3-pin debug connector. The probe supports Arm Serial Wire Debug (SWD) by default and is compatible with the CMSIS-DAP standard, working seamlessly with OpenOCD and other debug tools. Featuring a 3.3V nominal I/O voltage and an operating temperature range from -20°C to +70°C, this probe is built for reliable performance in various environments.

The kit includes the debug probe, a plastic case, a USB cable, a JST to JST cable, a JST to 0.1” female header cable, and a JST to 0.1” male header cable. This comprehensive set ensures you have all the necessary components to start debugging immediately without the need for soldering. The probe’s compact design (36.5mm x 26mm x 13.5mm) and lightweight construction (51g) make it a portable and convenient tool for developers and electronics enthusiasts.

Key Features

• USB to two-wire serial debug bridge (Arm Serial Wire Debug supported by default)
• USB to UART bridge
• Compatible with the CMSIS-DAP standard
• Works with OpenOCD and other tools supporting CMSIS-DAP
• 3.3V nominal I/O voltage
• Operating temperature range from -20°C to +70°C

What’s Included

• Debug probe
• Plastic case
• USB cable
• JST to JST cable
• JST to 0.1” female header cable
• JST to 0.1” male header cable

Whether you’re debugging Raspberry Pi boards or other microcontrollers, the Raspberry Pi Debug Probe offers a straightforward and efficient debugging experience.
