RF Solutions 5G GSM Adhesive Flexible Antenna, 700-3800MHz, 10dBi

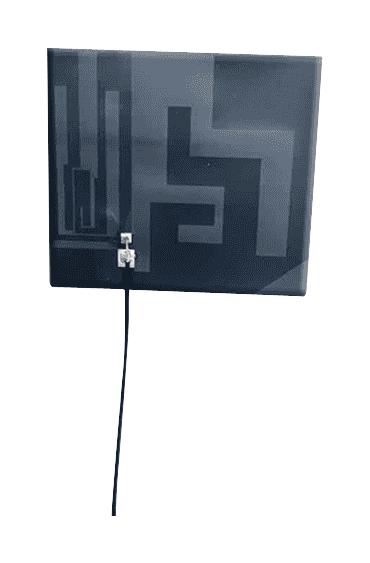

The RF Solutions 5G GSM Adhesive Flexible Antenna is a high-performance PCB antenna designed for GSM cellular applications, including GPS integration. Its compact size does not compromise on performance, making it ideal for space-saving applications where reliable connectivity is essential.

Key Features

• High-performance 700–3800MHz frequency range, covering multiple bands for versatile connectivity.
• Omni-directional polarisation, ensuring consistent signal reception in all directions.
• 10dBi gain, enhancing signal strength for improved performance.

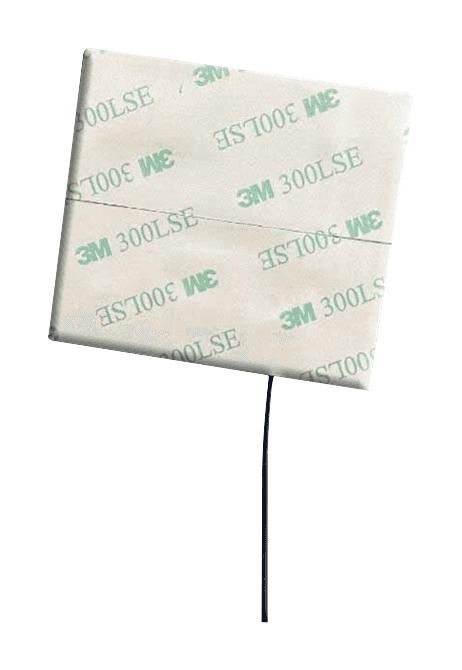

• Flexible PCB (0.1mm thickness) with a 3M adhesive sticker, allowing easy mounting on various surfaces.
• Durable and resilient, with an operating temperature range of -10°C to 70°C.
• Mini coaxial (1.13mm) to UFL connector, simplifying integration with compatible devices.

Applications

This antenna is well-suited for embedded GSM applications, IoT devices, and compact electronics requiring high-strength cellular connectivity. Whether for M2M communications, smart devices, or GPS tracking, this antenna provides reliable performance in a space-efficient design.

Technical Specifications

• Frequency Range: 700–3800MHz
• Gain: 10dBi
• VSWR: 1.5
• Input Power: 1W
• Impedance: 50ohm
• Polarisation: Omni-directional
• Mounting: Adhesive (3M sticker on rear)
• Connector: UFL via 15cm mini coax cable
