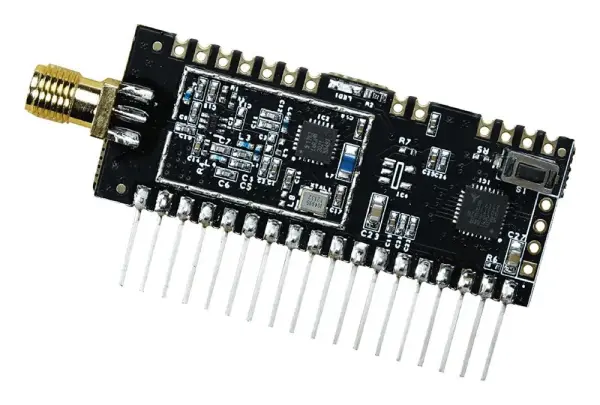

RF Solutions GAMMA62T Telemetry Module - 3.6V 15V

The RF Solutions GAMMA62T Telemetry Module is a versatile industrial-grade bi-directional radio module that can be configured as a transmitter, receiver, or transceiver. Its flexible design allows two or more modules to be combined, enabling the creation of simple to complex radio telemetry networks for advanced monitoring and control applications.

Engineered for reliability and ease of integration, the module is also compatible with any RF Solutions handheld transmitter operating on the same frequency. This capability allows you to build a robust, embedded remote control system tailored to your specific needs, perfect for industrial automation and remote site management.

Key Features & Performance

• Exceptional Range: Leveraging the latest OFDM and spread spectrum technology with advanced algorithms, the module achieves an industry-leading range of up to 20 km (12 miles), ensuring reliable communication over vast distances.
• Simple Integration: The module is designed for straightforward use with direct 'no-volt' switch inputs and digital switching outputs, requiring no external components for basic operation.
• Robust Connectivity: It features 10 'No Volt' switch inputs, 10 digital switching outputs, and 1 serial data output (RS232). A key advantage is the ability to map any input to any single output or multiple outputs simultaneously, providing immense flexibility in system design.
• Dual Frequency Operation: The module operates on either the 868MHz or 915MHz frequency bands, with the 868MHz version being RED/CE compliant for use in relevant markets.

Technical Specifications

• RF Modulation: FSK, LoRa, OFDM
• Maximum Frequency: 918MHz
• Receiver Sensitivity: -148dBm
• Supply Voltage Range: 3.6V to 15V
• Transmit Power: 22dBm
• Module Interface: RS232 Serial
• **Supply Qu<

Variant Details

• Size: 3.6V 15V
