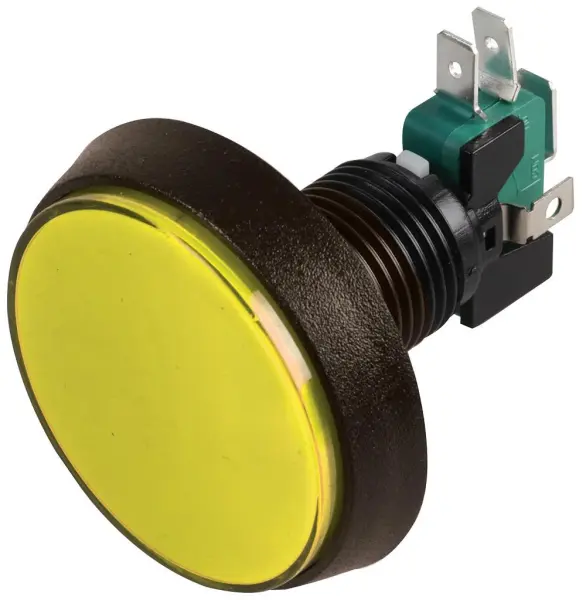

RJS Electronics LED Illuminated Round Dome Push Button Switch Yellow

RJS Electronics LED Illuminated Round Dome Push Button Switch is a panel-mount momentary push button with 1 Normally Open and 1 Normally Closed (SPST) contacts, suited to arcade gaming and custom control panels.

This switch combines a tactile momentary action with a round domed pushbutton and integrated LED illumination. The LED is powered separately and can be used to indicate status, activate a function or enhance the appearance of a control setup. The switch is part of the RJS-GME series.

Key Features

• Momentary spring-return operation, so the switch is only activated while pressed and returns to its default position when released
• Round domed pushbutton offering a tactile response with each press
• Panel-mount design secured through a standard panel cutout
• Quick-connect terminals that simplify wiring compared with traditional screw terminals
• Integrated LED illumination, powered separately

Applications

The switch is suited to arcade gaming consoles, custom control panels, interactive electronic projects, vending machines and industrial start buttons, where an impulse command is required.

Specifications

• Contact Configuration: 1 Normally Open (NO) / 1 Normally Closed (NC) (SPST)
• Switch Operation: Momentary, spring return
• Actuator Style: Round domed pushbutton
• Mounting: Panel mount
• Terminals: Quick-connect
• Illumination: LED
• Colour: Yellow
• Weight: 50 g
• Width: 2.2
• Depth: 0.2
• Height: 3.3

Choose this RJS Electronics switch when a panel-mounted, illuminated momentary push button with defined NO and NC contacts is required for a custom control panel or electronics project.
