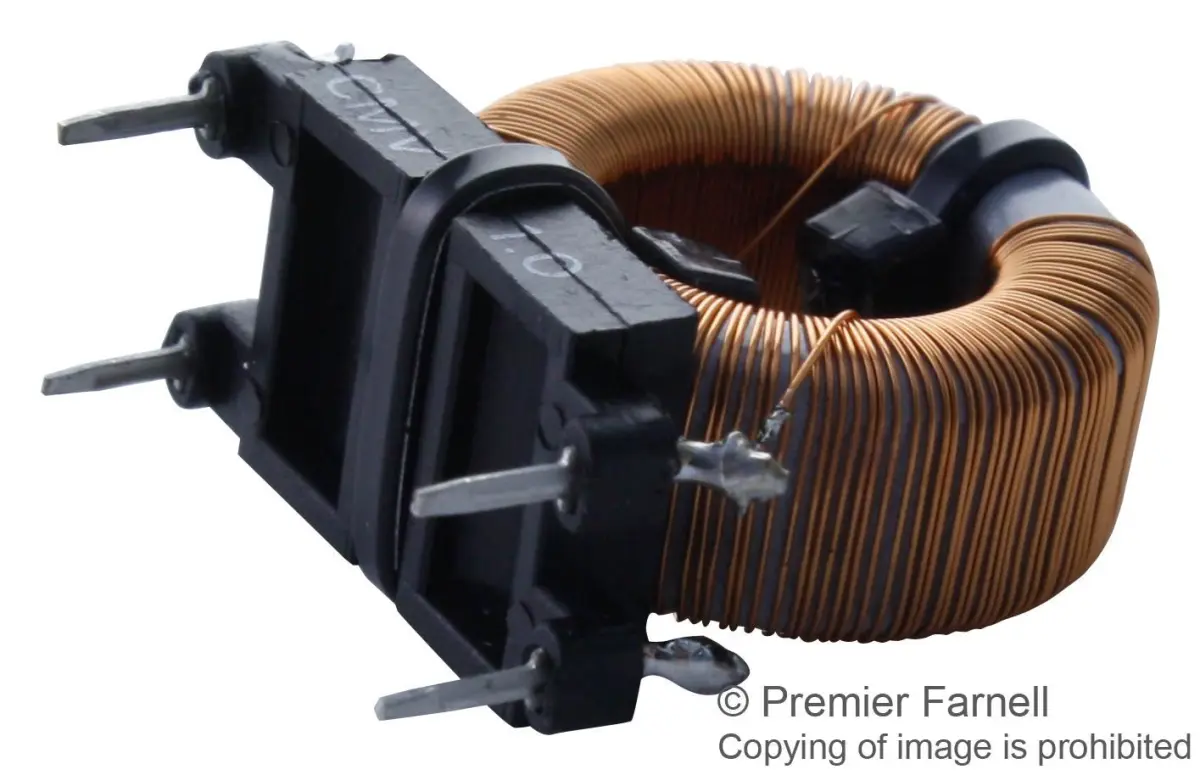

ROXBURGH EMC CMV Series Common Mode Choke 2x 18mH 1A

The ROXBURGH EMC CMV Series Common Mode Choke is designed for effective electromagnetic interference suppression in electronic circuits. Featuring a dual-winding configuration, this component provides an inductance of 2x 18mH and a DC current rating of 1A, making it suitable for a variety of filtering applications.

With a maximum DC resistance of 0.64 ohms, this choke ensures efficient operation while maintaining reliable performance. It is built to withstand demanding environments, featuring an operating temperature range from -25°C to 100°C, which guarantees stability across various thermal conditions.

The compact dimensions of this common mode choke, measuring 43 mm in height, 33 mm in width, and 15 mm in depth, allow for straightforward integration into circuit designs where space is at a premium. Weighing just 25.05 grams, it is a lightweight yet robust solution for EMC filtering requirements. This component is part of the trusted CMV Series, ensuring consistency and quality for your electronic assemblies.

Key Specifications

• Inductance: 2x 18mH
• DC Current Rating: 1A
• DC Resistance Max: 0.64 ohm
• Operating Temperature Range: -25°C to 100°C
• Product Range: CMV Series
• Dimensions: 43 mm x 33 mm x 15 mm
• Weight: 25.05 grams
