SEEED STUDIO Dual H-Bridge Motor Driver Board
Drive inductive loads with this SEEED STUDIO dual H-bridge motor driver board. Features TTL logic, heat sink & LED indicators. 43x33x15mm.

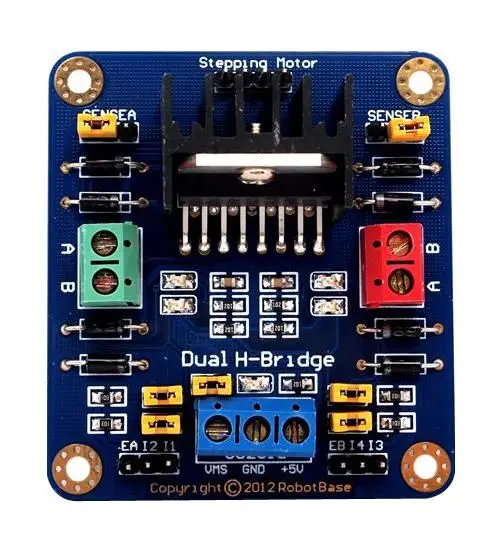

The SEEED STUDIO Dual H-Bridge Motor Driver Board is a high voltage, high current dual full-bridge driver module designed to accept standard TTL logic levels. Built around an integrated monolithic circuit, this board is engineered to drive inductive loads such as relays, solenoids, DC motors, and stepping motors with ease.
Featuring a lightweight design with a small footprint, this driver board delivers a high driver capacity while incorporating essential protective features like FWD protection. A heavy load heat sink ensures reliable operation under demanding conditions, while two current probe ports allow for straightforward monitoring. The board includes a power selection switch and four pull-up resistor switches for versatile configuration.
Key Features
- Two enable inputs to enable or disable the device independently of input signals
- External terminal for connecting an external sensing resistor
- Additional supply input allows logic to operate at a lower voltage
- Supports 2 DC motors or 4-coil dual-phase stepper motor output
- Motor direction indication LEDs for clear status visibility
- 4 standard mounting holes for secure installation
This motor control development board is an excellent choice for electronics projects requiring robust and flexible motor management.
