SEEED STUDIO RS232 to TTL Converter Board, MAX3232IDR
Compact SEEED STUDIO converter board for RS232 to TTL signals. Features ±15kV ESD protection, 230,400 baud rate & DB9 connector.

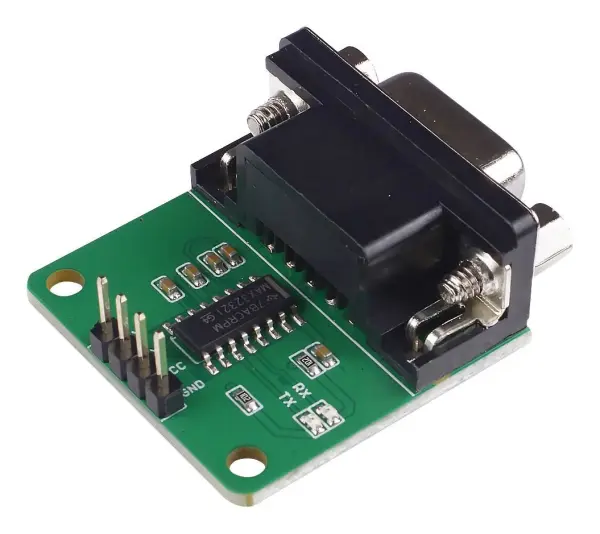

The SEEED STUDIO RS232 to TTL Converter Board is a compact and efficient module designed for seamless level conversion between classic RS232 serial communication and TTL (Transistor-Transistor Logic) signals. Based on the robust MAX3232IDR chip, it is perfect for integrating modern microcontroller projects with legacy computer equipment and peripherals.
This versatile converter supports multiple baud rates and is theoretically capable of high-speed communication up to 230,400bps, ensuring reliable data transfer for a wide range of applications. It features a DB9 female header for direct connection to standard serial cables, making installation straightforward and hassle-free.
Key Features & Benefits
- High-Speed Conversion: Supports communication up to 230,400 baud for fast and efficient data transfer.
- Enhanced Protection: Incorporates ±15kV ESD (Electrostatic Discharge) protection on its RS232 lines, safeguarding connected devices from voltage spikes.
- Efficient Design: Built with low power consumption in mind, making it suitable for portable and battery-powered projects. The board includes two drivers and two receivers for full-duplex communication.
- Compact & Robust: The small form factor and stable performance make it ideal for integration into space-constrained designs like handheld equipment and palmtop PCs.
Engineers, hobbyists, and developers will find this converter board an essential tool for debugging, programming, and interfacing with a vast array of industrial and consumer electronics, providing a reliable bridge between different voltage logic families.
