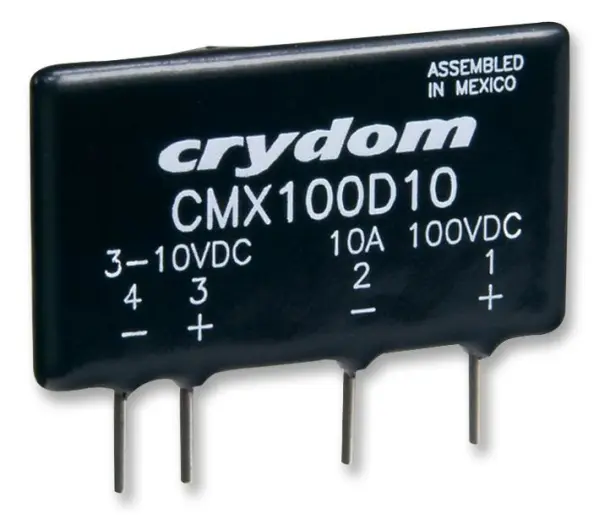

Sensata Crydom CMX Series 10A PCB Solid State Relay

The Sensata Crydom CMX Series Solid State Relay is a compact, reliable DC switching solution designed for industrial applications. With its SPST-NO contact configuration and 10A load current, this relay delivers consistent performance for high-speed switching requirements.

Featuring MOSFET output technology, this solid state relay offers exceptionally low ON-state resistance, reducing heat generation and improving energy efficiency. The integrated input status LED provides immediate visual confirmation of relay operation, simplifying system diagnostics and maintenance. Designed for PCB mounting with through-hole terminals, it integrates seamlessly into standard electronic assemblies.

Key Specifications

This relay supports a 0–100VDC load voltage range and a 3–10VDC control voltage range, making it suitable for a wide variety of low-voltage DC applications. The compact SIP (Single Inline Package) footprint, measuring just 43mm x 33mm x 15mm and weighing 11g, ensures minimal space occupancy on the printed circuit board.

Safety and Compliance

The relay is compliant with SVHC regulations, confirming it contains no substances of very high concern. It is essential to observe all safety warnings, including the risk of electric shock, explosion, or arc flash. Ensure all power is disconnected before installation or maintenance, and verify all connections before reapplying power.

With its robust construction and advanced features, the Sensata Crydom CMX Series Relay is an excellent choice for industrial control systems, automation equipment, and other demanding environments where reliable DC switching is critical.
