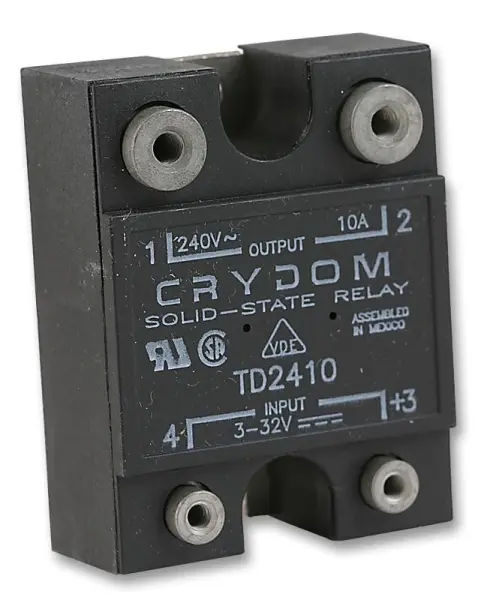

Sensata/Crydom TD2410 Solid State Relay 10A 24-280Vrms

The Sensata/Crydom TD2410 Solid State Relay is a panel-mount relay rated for a 10A maximum load current, designed for reliable switching of resistive loads. It features a compact, thermally conductive epoxy encapsulation and convenient screw terminals for straightforward installation in industrial control applications.

Overview

The TD2410 uses a TRIAC output with zero-crossing switching, which minimises electrical noise and inrush current. It operates across a wide voltage range from 24Vrms to 280Vrms, making it suitable for resistive loads such as heaters and incandescent lamps. As a solid state device with no moving parts, it offers silent operation and high switching speed.

Key Features

• Zero-crossing TRIAC output for reduced electromagnetic interference and gentler load switching
• 10A maximum load current with a 24Vrms to 280Vrms operating range
• SPST-NO contact configuration with a minimum load current of 40mArms
• Maximum surge current rating of 120Apk (16.6ms) for momentary overloads
• 400Vpk transient overvoltage protection
• 4000Vrms dielectric strength (input/output/base) for safe isolation
• Control voltage range of 3VDC to 32VDC
• Thermally conductive epoxy encapsulation for efficient heat dissipation
• Screw terminals for secure and simple wiring

Dimensions and Weight

• Width 3.3, depth 1.5, height 4.3
• Weight 100 gm

Important Safety Notice

Disconnect all power before installing or working with this equipment. There is a risk of material damage and a hot enclosure. Ensure adequate heat sinking is provided.
