SPARKFUN OpenScale Weight & Temperature Sensor Board
Open-source weight & temperature sensor board with load cell support. Perfect for precision measurements & automated monitoring.

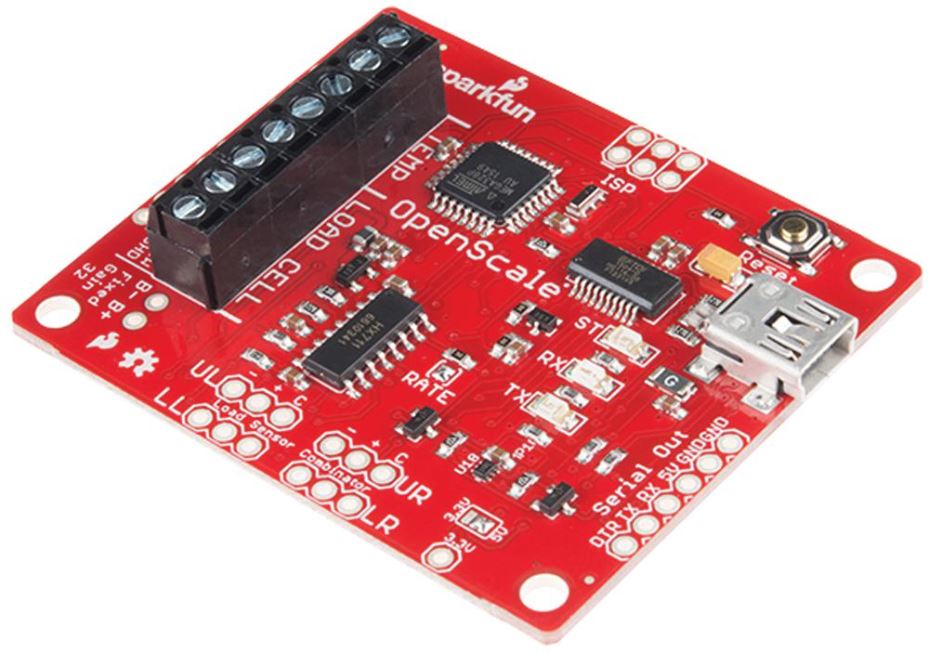

The SPARKFUN OpenScale Weight & Temperature Sensor Board is an open-source solution designed for accurate weight and temperature measurements. It supports multiple load cell types and features a user-friendly serial configuration menu, allowing easy setup of calibration values, sample rates, timestamps, and precision units.
This board is ideal for static load applications and scenarios requiring continuous monitoring without manual intervention. It includes an onboard ATmega328P microcontroller for reliable communication and efficient data transfer.
Key Features
- Open-Source Design: Simplifies customisation and integration.
- Multi-Load Cell Support: Compatible with various load cell types.
- Serial Configuration Menu: Enables easy setup for calibration, sample rate, and precision.
- Onboard Microcontroller: ATmega328P ensures smooth data communication and processing.
- Versatile Communication: Default TTL 9600bps 8N1 with configurable baud rates ranging from 1200 to 1,000,000bps.
- Adjustable Data Rates: Choose between 10SPS or 80SPS output data rates.
- Power Specifications: Operates at 5V (80-100mA) with power cycling above 500ms.
Applications
- Ideal for static weight measurement.
- Suitable for automated monitoring systems.
- Perfect for precision measurements in laboratory or industrial settings.
The SPARKFUN OpenScale Sensor Board delivers reliability and adaptability for all your precision measurement needs.
- Static load applications
- Continuous monitoring systems
- Precision measurements
- Laboratory or industrial settings
- Open-source solution
- Capable of reading multiple load cell types
- Onboard ATmega328P microcontroller
- TTL 9600bps 8N1 communication (default)
- Configurable baud rate (1200-1,000,000bps)
- Selectable output data rate (10SPS or 80SPS)
- 5V operating voltage (80-100mA)
- Power cycling above 500ms
- Sensor board only included
