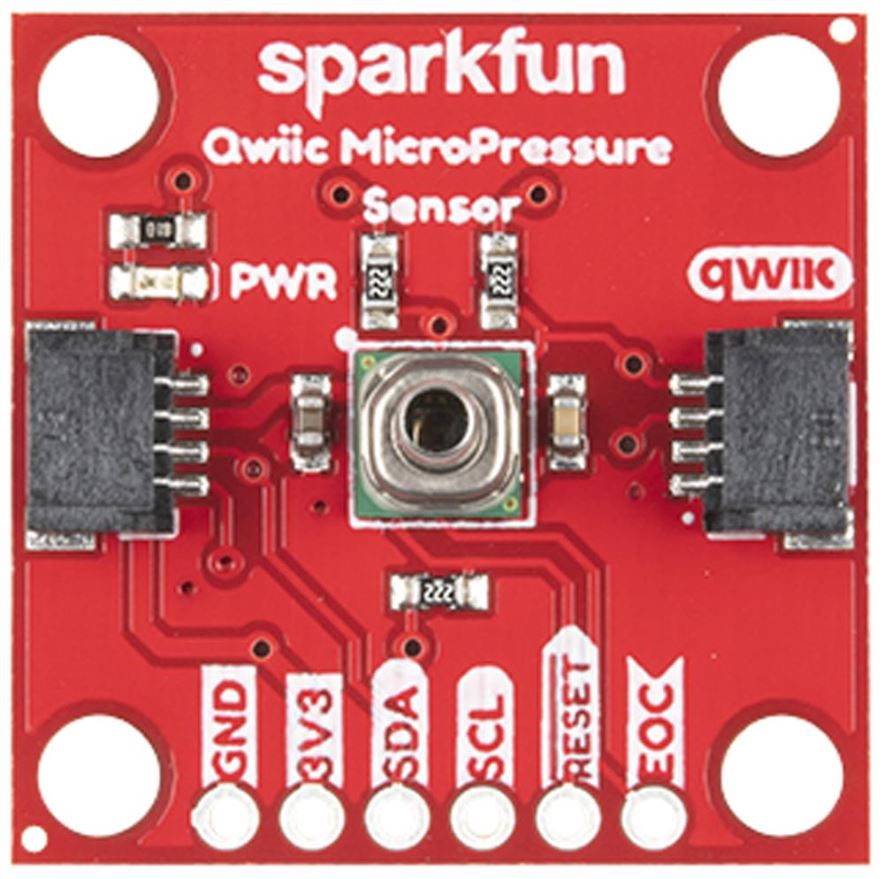

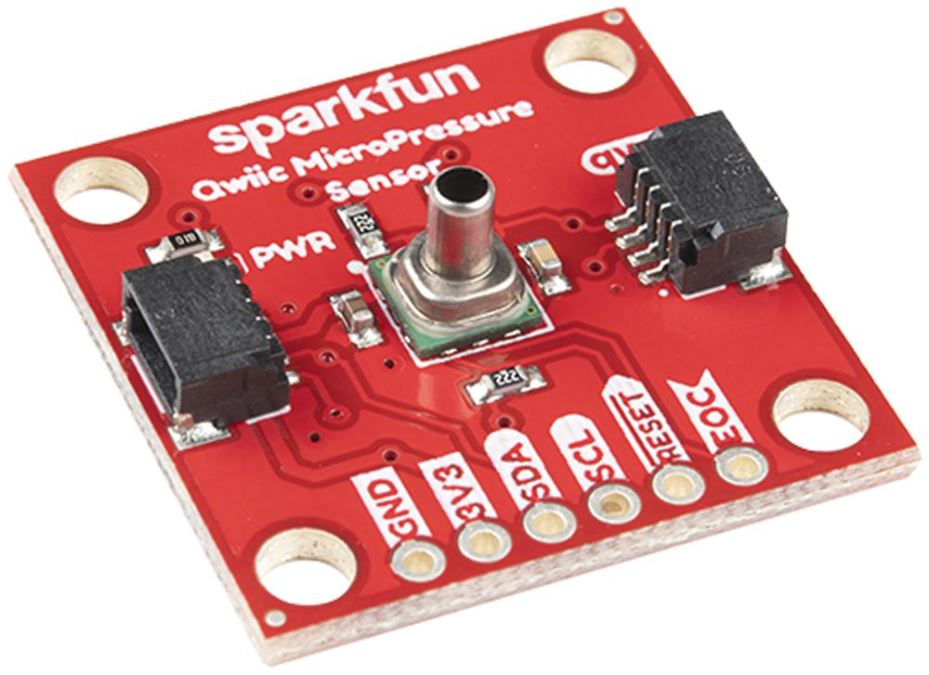

SparkFun Qwiic MicroPressure Sensor Board, 25psi
Compact 25psi pressure sensor board with Qwiic connectors for easy integration. Ideal for prototyping and precise measurements.
The SparkFun Qwiic MicroPressure Sensor Board (MPRLS0025PA00001A) is a compact breakout board featuring a high-precision 25psi piezoresistive silicon pressure sensor. It includes an on-board Application Specific Integrated Circuit (ASIC) for calibration and compensation, ensuring accurate and reliable pressure readings. This sensor is an excellent choice for engineers and hobbyists working on projects requiring precise pressure measurements.
The board comes with dual Qwiic connectors, making it easy to integrate into the Qwiic Connect System for rapid prototyping without the need for soldering. This feature significantly reduces setup time and complexity, allowing you to focus on your project's functionality.
Key Features
- Pressure Range: 60mbar to 2.5bar (calibrated and compensated)
- Accuracy: ±0.25%
- Operating Pressure: 25psi
- Output: 24-bit Digital I2C (address: 0x18)
- Supply Voltage: 1.8-3.6V
- Power Consumption: Ultra low, as low as 0.01mW (typical)
Applications
This sensor is ideal for projects involving environmental monitoring, medical devices, industrial automation, and robotics. Its small footprint and ease of use make it suitable for both professional and DIY applications.
Specifications
- Board Dimensions: 25.4x25.4mm
- Contents: Qwiic sensor board only
- Weight: 10g
- Environmental monitoring
- Medical devices
- Industrial automation
- Robotics
- Sensor Type: Piezoresistive silicon pressure sensor
- Pressure Range: 60mbar to 2.5bar
- Accuracy: ±0.25%
- Operating Pressure: 25psi
- Output: 24-bit Digital I2C (address: 0x18)
- Supply Voltage: 1.8-3.6V
- Power Consumption: 0.01mW (typical)
- Board Dimensions: 25.4x25.4mm
- Weight: 10g
