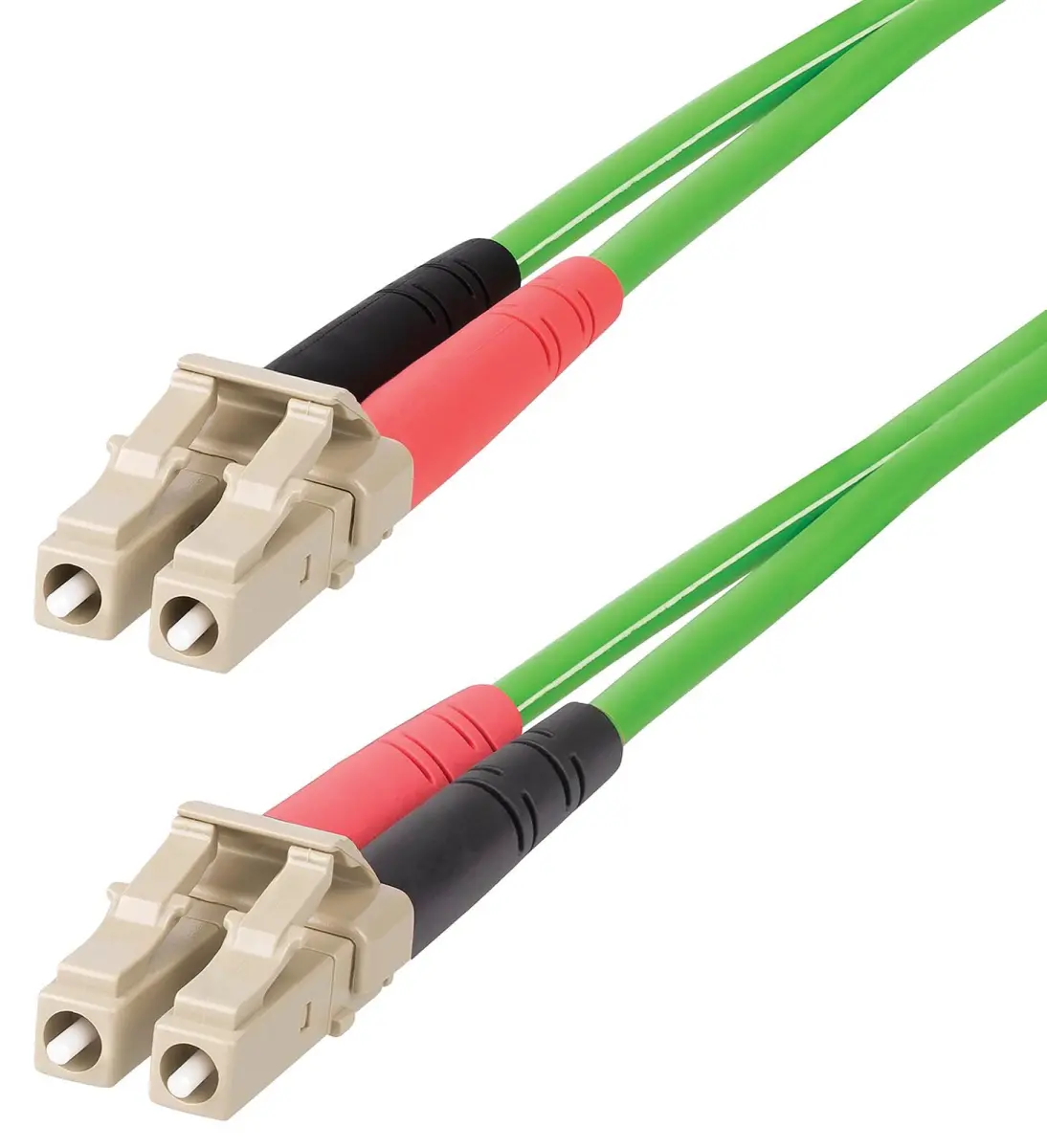

StarTech.com Multimode OM5 LC-LC LSOH Fibre Optic Patch Lead - 10m

This StarTech.com Multimode OM5 LC-LC LSOH Fibre Optic Patch Lead delivers reliable, high-performance connectivity for demanding 40G and 100G networks. Engineered with bend-insensitive fibre and moulded strain reliefs, it supports cable runs requiring tight micro/macro bends while maintaining low attenuation, ensuring stable signal integrity in space-constrained installations.

The OM5 cable supports Shortwave Wavelength Division Multiplexing (SWDM) across an extended VCSEL wavelength range of 850-953nm, enhancing signal quality and performance capacity over OM4 cables. It is also backward compatible with 50/125µm fibre equipment, ensuring seamless integration with legacy LANs and existing infrastructure. Ideal for use with 850-953nm VCSEL and 1300nm LED sources.

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this fibre optic cable minimises smoke, toxicity, and corrosion when exposed to extreme heat or fire, making it a safer choice for critical environments. The cable features UPC-polished ends for minimal return loss and is optimised for fibre switches, servers, SANs, and SFP+/QSFP+/QSFP28 transceivers.

Specifications

• Fibre Optic Connector A: LC Duplex
• Fibre Optic Connector B: LC Duplex
• No. of Fibres: 2 Fibres
• Fibre Type: OM5 Multimode
• Fibre Size: 50/125µm
• Cable Outer Diameter: 2.9mm
• Operating Temperature: -20 to 60°C (-4 to 140°F)
• Cable Length: 25m (82ft)
• Jacket Material: LSZH (Low-Smoke, Zero-Halogen)
• Polish Type: UPC

Backed by lifetime multi-lingual technical assistance, this OM5 patch lead provides a durable and future-proof solution for high-speed data centre and enterprise networking applications.

Variant Details

• Size: 10m
