STM32F407VG Discovery Kit STM32F4 MCU Dev Board
STM32F407VG Discovery Kit with ARM Cortex-M4, ST-LINK, sensors, audio DAC. Ideal for rapid development and testing.
The STM32F407G-DISC1 Discovery Kit enables rapid development with the STM32F407 high-performance microcontroller featuring an ARM Cortex-M4 32-bit core. Whether you are a beginner or an experienced engineer, this kit includes everything needed to get started quickly.

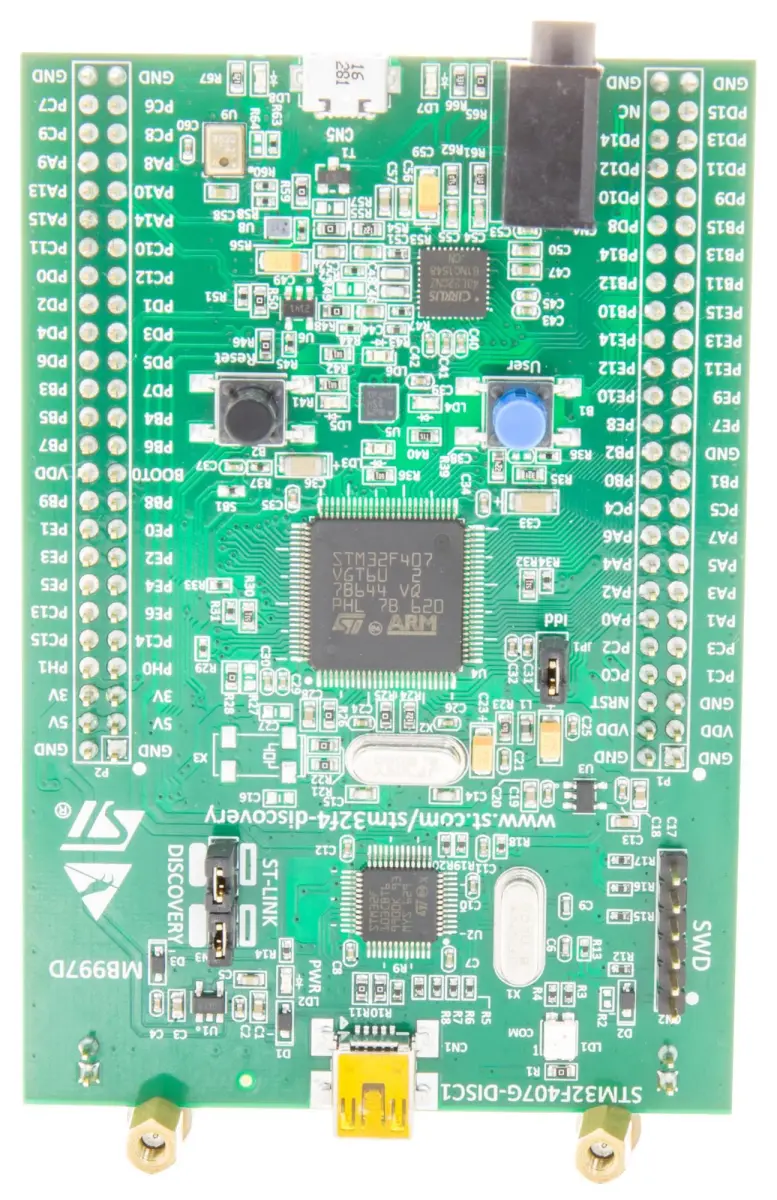

Based on the STM32F407VGT6, the board integrates an ST-LINK/V2 or ST-LINK/V2-A embedded debug tool, two ST MEMS digital accelerometers, a digital microphone, an audio DAC with integrated class D speaker driver, eight LEDs, two push buttons, and a USB OTG micro-AB connector.
Key Features
- USB ST-LINK with re-enumeration capability (virtual COM port, mass storage, debug port)
- Board power supply via USB bus or external 5V supply
- 3V and 5V external application power supply
- LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
- MP45DT02 ST MEMS audio sensor (omni-directional digital microphone)
- CS43L22 audio DAC with integrated class D speaker driver
- Eight LEDs
- Two push buttons (user and reset)
- USB OTG FS with micro-AB connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
The kit includes comprehensive free software with a variety of examples, making it ideal for applications in test and measurement and industrial fields. Its compact dimensions (43mm x 33mm x 15mm) and a weight of 79 grams ensure easy handling and integration into your projects.
