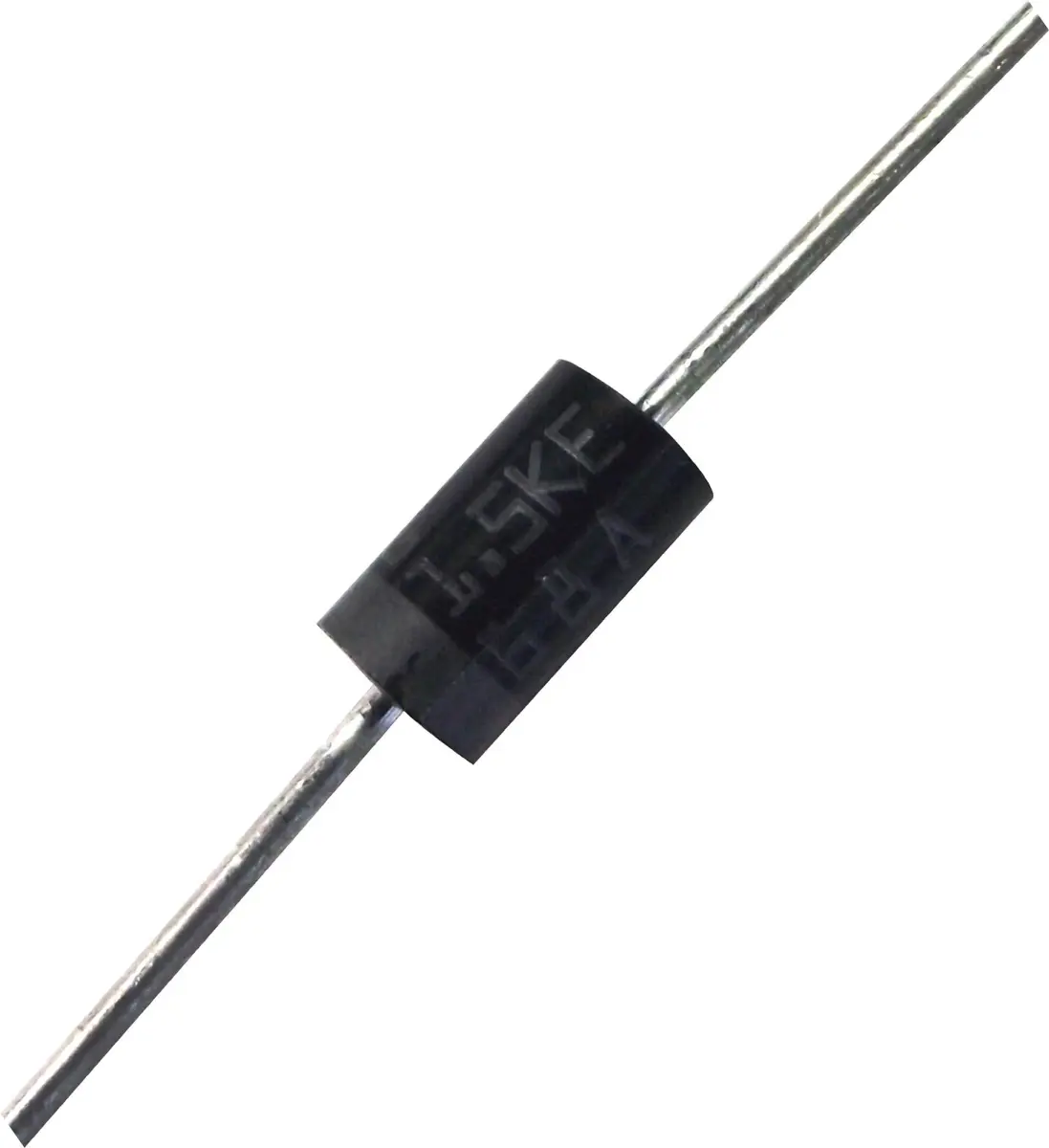

STMicroelectronics 1.5KE Series Bidirectional TVS Diode 20.5V 33.2V Axial Lead

The STMicroelectronics 1.5KE Series Bidirectional TVS Diode is a high-performance transient voltage suppressor, engineered to provide robust protection for sensitive electronic circuits. These diodes offer immediate, high-power overvoltage protection by utilising a fast-acting clamping mechanism, safeguarding components from damaging voltage spikes and transients. The bidirectional variant is specifically designed for alternating current (AC) applications, making it a versatile solution for a wide range of electrical environments.

With a formidable peak pulse power dissipation of 1.5kW, this TVS diode can handle significant surge events. It features an extremely fast response time and a high surge capability, ensuring sensitive devices are protected almost instantaneously. Its low clamping factor is critical, as it limits the voltage let-through to a safe level, well below the maximum clamping voltage of 33.2V, based on a reverse standoff voltage of 20.5V.

Key Features & Applications

• Robust Construction: The axial leaded (DO-201) package offers excellent assembly flexibility for through-hole mounting, providing reliable mechanical and electrical connections.
• High-Temperature Performance: It delivers best-in-class performance even at high junction temperatures, with a maximum operating temperature of 175°C.
• Broad Voltage Range: Part of a series with a breakdown voltage range from 6.8V to 440V, this 20.5V model is ideal for protecting low-voltage integrated circuits and other voltage-sensitive components.
• Wide Applicability: Essential for enhancing reliability in safety-critical systems, industrial controls, power management units, consumer electronics, and portable devices.

This component is a fundamental part of any robust circuit protection strategy, ensuring longevity and stability for your electronic designs by mitigating the risks posed by electrical transients.
