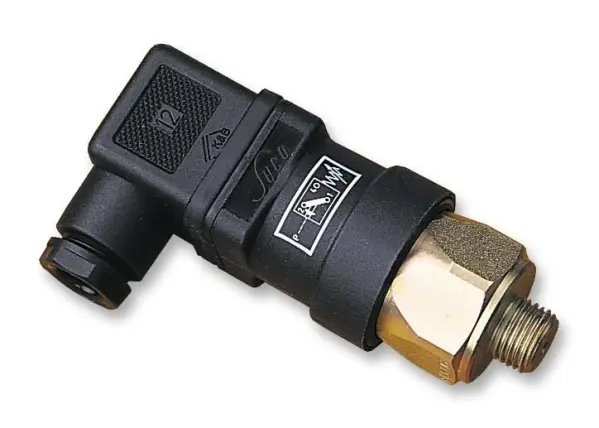

SUCO Piston Pressure Switch 50-200bar SPDT 4A G1/4 BSP

The SUCO 0185-46003-1-003 is a robust piston pressure switch designed for precise pressure monitoring in demanding industrial applications. Its zinc-plated steel body ensures durability and corrosion resistance, making it suitable for harsh environments. Equipped with a reliable SPDT changeover contact rated at 4A and a built-in DIN connector, this switch provides simple and secure electrical integration. The switch operates over an adjustable range from 50 to 200 bar and offers an IP65 protection rating, safeguarding against dust and water ingress. With an impressive mechanical life of 106 operations at 50 bar, this switch delivers long-lasting performance. The unit features a ±5 bar tolerance and can withstand a static overpressure of up to 600 bar, ensuring reliability even under pressure spikes. The G 1/4” BSP pressure port and stud mounting simplify installation. Suitable for a wide range of sensing and instrumentation tasks, this pressure switch is an excellent choice for monitoring hydraulic and pneumatic systems where accuracy and robustness are critical.

Key Features:

• Piston type pressure switch with SPDT changeover contact
• Adjustable pressure range from 50 to 200 bar
• IP65 protection degree for harsh conditions
• 4A rated switching current at 250VAC
• Durable zinc-plated steel body
• Built-in DIN connector for easy wiring
• High static overpressure capability up to 600 bar
• Wide operating temperature range -30°C to +100°C
