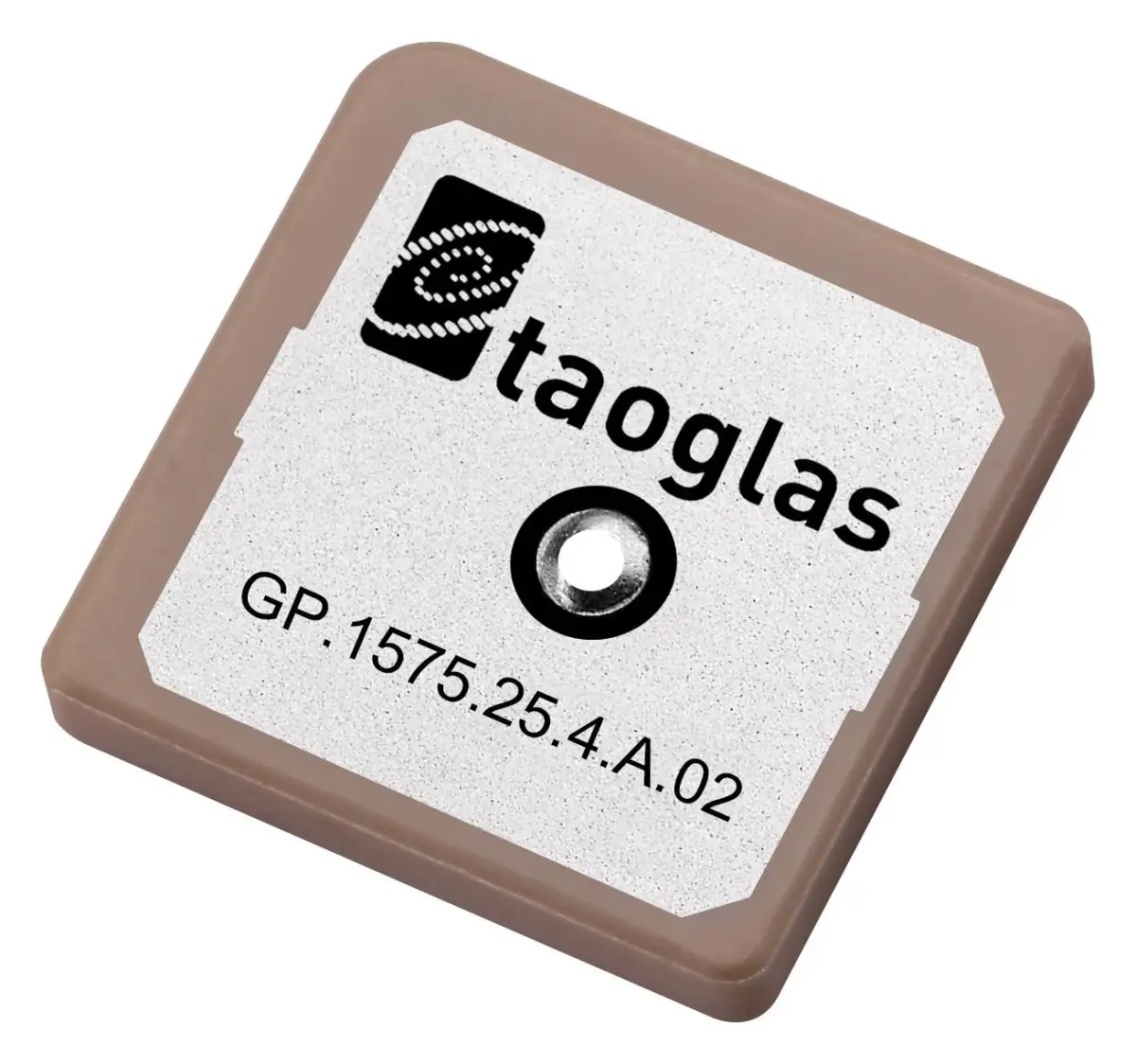

Taoglas Right Hand Circular Polarisation Patch Antenna, 1.575GHz, Adhesive, 35g
Compact Taoglas adhesive-mount patch antenna for GPS (1.575GHz). Features RHCP, 1.55dBi gain, 1.2 VSWR & 50 ohm impedance.
The Taoglas Right Hand Circular Polarisation Patch Antenna is a compact and highly efficient adhesive-mount antenna designed for precise GNSS and GPS applications operating at the 1.575GHz L1 frequency. This antenna utilises right-hand circular polarisation (RHCP), which is optimal for receiving signals from satellites, providing enhanced signal reliability and reduced multipath interference in challenging environments.
Engineered with a low Voltage Standing Wave Ratio (VSWR) of 1.2, it ensures maximum power transfer and minimises signal reflection for superior performance. With a gain of 1.55dBi, it offers a stable and consistent signal boost, making it ideal for integration into space-constrained devices where reliable positioning is critical.
Its ultra-low profile design, with dimensions of just 33mm x 22mm x 2mm, and a light weight of 35 grams, allows for easy and discreet installation on a variety of surfaces using its integrated adhesive backing. This eliminates the need for drilling or complex mounting hardware, simplifying the assembly process. The 50-ohm input impedance ensures broad compatibility with standard RF circuitry and connectors.
Constructed with robust materials, this patch antenna is built to deliver long-term durability and consistent performance in automotive, telematics, asset tracking, and portable navigation devices. Its reliable adhesive mounting provides a secure and permanent fit, resistant to vibrations and environmental factors.
Key Features
- Frequency: Optimised for 1.575GHz (GPS L1 band)
- Polarisation: Right-Hand Circular (RHCP) for superior satellite signal reception
- Gain: 1.55dBi for effective signal strength
- VSWR: 1.2 for excellent impedance matching and efficiency
- Mounting: Simple adhesive backing for quick installation
- Compact Profile: Slim 2mm height for low-profile design
