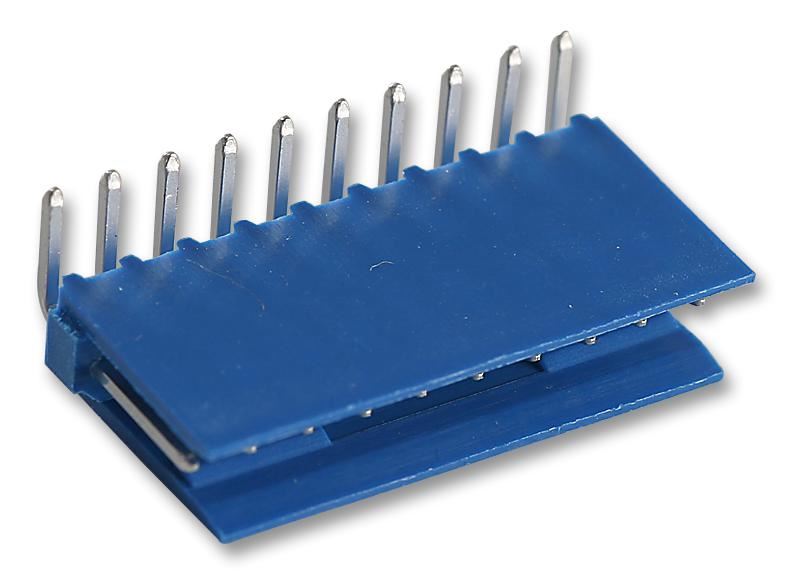

TE Connectivity 1-281698-0 Shrouded Header, 1x10 Way, 2.54mm Pitch
TE Connectivity 10-position shrouded header with tin-plated contacts for reliable wire-to-board connections in industrial applications.
The TE Connectivity 1-281698-0 is a 10-position, single-row shrouded wire-to-board header with tin-plated phosphor bronze contacts encased in a durable blue high-temperature thermoplastic housing. Designed for through-hole right-angle mounting, this plug-style connector provides reliable connectivity for printed circuit board applications.
Featuring insulation displacement crimp (IDC) termination, this header ensures secure connections to wires or cables. The shrouded design offers contact protection and includes polarisation features for proper mating alignment. Compliant with UL94V-0 flammability rating, it meets stringent safety standards for industrial use.
Key Features
- Robust construction with high-temperature thermoplastic housing
- Tin-plated phosphor bronze contacts for excellent conductivity
- Through-hole right-angle mounting style
- Polarisation mating alignment type for correct installation
- UL94V-0 flammability rated for safety
- Ideal for industrial applications requiring reliable wire-to-board connections
Part of the AMPMODU HE14 product range, this connector combines durability with precise engineering for optimal performance in demanding electronic environments.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Printed circuit board applications
- Industrial connector systems
- Wire-to-board connections
- Electronics requiring reliable interfacing
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Pitch Spacing: 2.54mm
- No. of Rows: 1
- No. of Contacts: 10
- Contact Termination Type: Through Hole Right Angle
- Product Range: AMPMODU HE14
- Connector Shroud: Shrouded
- Contact Material: Phosphor Bronze
- Contact Plating: Tin Plated
- Housing Material: High Temperature Thermoplastic
- Flammability Rating: UL94V-0
- Weight: 900g
