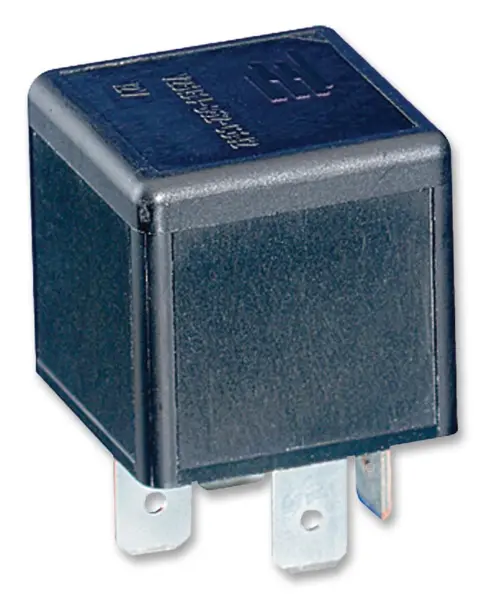

TE Connectivity F4 Automotive Power Relay 24VDC 40A

The TE Connectivity F4 Automotive Power Relay is a high-performance switching solution designed for demanding applications. Equipped with a DC coil, this relay ensures reliable operation across a wide ambient temperature range of -40 to 125°C, making it suitable for extreme environments.

Featuring a 1-form-C (1NO) silver-based contact, this power relay provides excellent conductivity and switching performance. It comes with a standard cover and supports both plug-in and quick-connect terminal types, allowing for versatile and straightforward installation.

With a robust contact current rating of 40A and a coil voltage of 24VDC, this SPST-NO relay is built to handle substantial electrical loads safely. Its compact design, measuring just 43 mm in height, 33 mm in width, and 15 mm in depth, ensures it can be easily integrated into space-constrained setups.

Key Specifications

• Coil Voltage: 24VDC
• Contact Current: 40A
• Contact Configuration: SPST-NO (1 Form A / 1NO)
• Contact Material: Silver-based
• Terminal Type: Plug-in / Quick connect
• Mounting Type: Plug In
• Ambient Temperature Range: -40 to 125°C
• Coil Resistance: 324 ohm
• Dimensions: 43 mm (H) x 33 mm (W) x 15 mm (D)
• Weight: 29 grams

This F4-series relay is an ideal choice for automotive and industrial environments requiring dependable power management.
