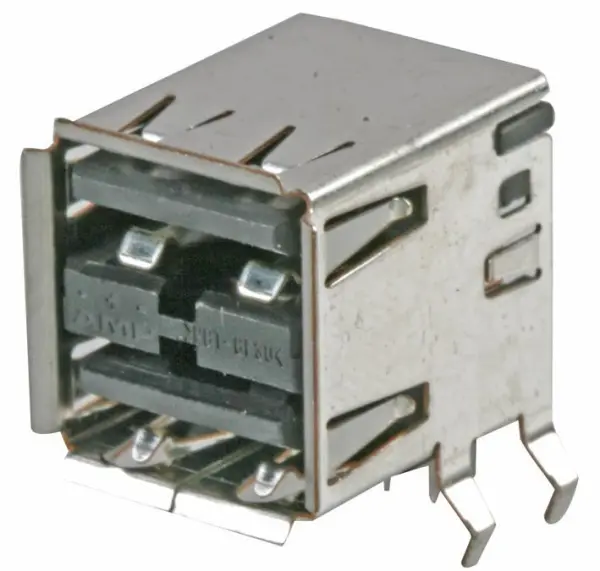

TE Connectivity USB Right Angle Stacked Type A Receptacle

The TE Connectivity USB Right Angle Stacked Type A Receptacle is a compact, dual-port solution designed for PCB mounting. Its right angle orientation allows for efficient cable routing and space-saving layouts in environments where panel space is at a premium. The stacked configuration provides two USB Type A connections within a single board footprint, effectively doubling connectivity without consuming additional PCB surface area.

This receptacle is engineered for secure and reliable performance, making it suitable for a broad range of digital interconnection tasks. The robust construction ensures stable mounting and long-term durability in various embedded and consumer electronic applications.

Key Features

• Dual-Port Stacked Design: Provides two USB Type A connections in one compact footprint.
• Right Angle Orientation: Supports space-efficient PCB layouts and simplified cable management.
• Versatile Application: Ideal for computer, hub, and embedded hardware designs.
• Precise Dimensions: Compact size with a height of 43 mm, width of 33 mm, and depth of 15 mm.
• Lightweight: Approximate weight of 5 grams, minimising added mass to the final assembly.

Whether you are designing a new hub, upgrading a computer motherboard, or integrating USB connectivity into custom embedded hardware, this TE Connectivity receptacle offers a reliable and space-efficient interconnection solution.
