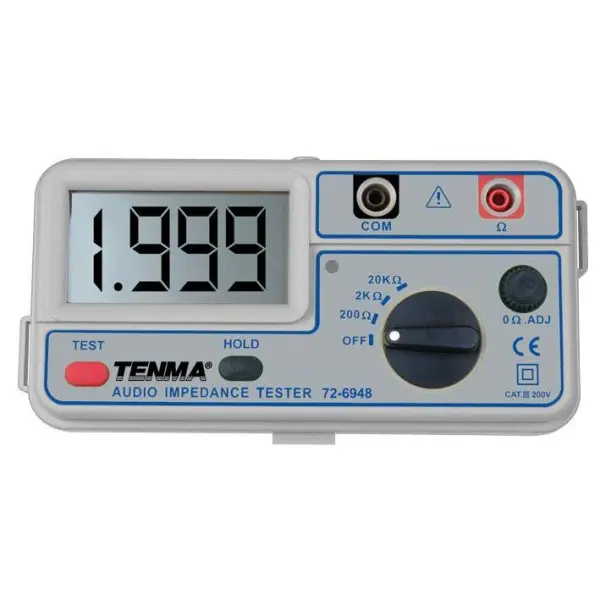

Tenma Digital Audio Speaker Impedance Tester

This Digital Audio Speaker Impedance Tester is essential for reliable installation of background music and paging systems in residences, office buildings and public areas. Avoid costly service calls and amplifier damage by verifying actual speaker system impedance prior to operation. Unlike conventional Volt/Ohm meters, which measure DC resistance, this unit utilizes an internal 1kHz oscillator to measure true impedance.

Key Features

• Measures impedance matching volume controls, switchers, transformers and passive crossovers
• Measures up to 20kΩ
• Can be utilized with 25V/50V/70V/100V speaker line transformers in commercial installs (see manual)
• Large digital display features 1-inch characters for easy viewing
• Rotary selector provides 200Ω, 2kΩ and 20kΩ scales
• Rugged, double insulated case is CATIII rated for use up to 200V

Included

• Test leads
• Carry case
• Owner's manual

Power

• Requires 8x AA batteries (not included)

Dimensions

• Width: 178 mm
• Height: 82 mm
• Depth: 77 mm

This tester is designed for professionals in audio, test measurement, laboratory and electronics service environments, providing accurate impedance readings for commercial installations.
