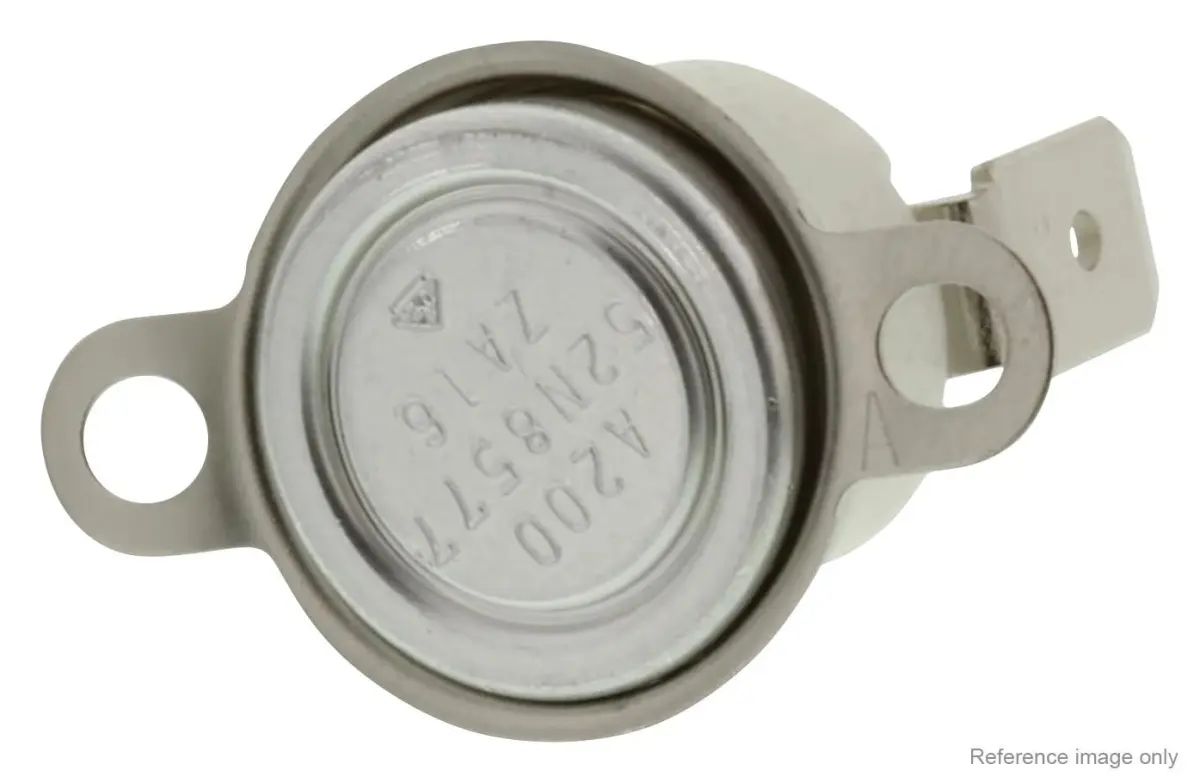

Thermal Switch, Normally Open, 50°C, 10A, 250V

This Multicomp Pro Thermal Switch is a snap-action thermostat designed to regulate system temperatures by sensing a 50°C threshold and switching heating or cooling systems accordingly. With a normally open (N/O) contact that closes on rise, it activates when the temperature reaches the set point, making it ideal for thermal management in a variety of applications.

The switch features an automatic reset function, ensuring seamless operation without manual intervention. It is housed in a robust phenolic housing with a shield material rated for continuous use, providing durability and reliable performance. The flange mount design allows for secure installation onto surfaces, while the quick connect terminals (available in 0° and 90° angle options, nickel-plated brass) ensure easy and secure wiring.

With a contact rating of 10A at 250V, this thermostat is suitable for controlling moderate electrical loads. The switch operates with a set temperature of 50°C (±3°C) and a reset temperature of 35°C (±5°C), offering precise thermal control. It supports a maximum off temperature of 85°C and a maximum on temperature of 100°C, making it versatile for various industrial and commercial environments.

Typical Applications

• Temperature controllers
• Industrial automation
• Process control systems
• HVAC systems

Key Specifications

• Contact Operation: Normally Open (close on rise)
• Switching Temperature: 50°C
• Reset Temperature: 35°C
• Contact Rating: 10A at 250V
• Housing Material: Phenolic, height 12mm
• Shield Material: Phenolic, with temperature limits (max off 85°C, max on 100°C)
• Terminal Options: 0° or 90° angle, nickel-plated brass (6.3x0.8mm)
• Mounting: Flange mount
• Product Range: MP Auto-Reset Thermostats N/O

The switch measures 33mm in height, 22mm in width, and 2mm in depth, with a weight of
