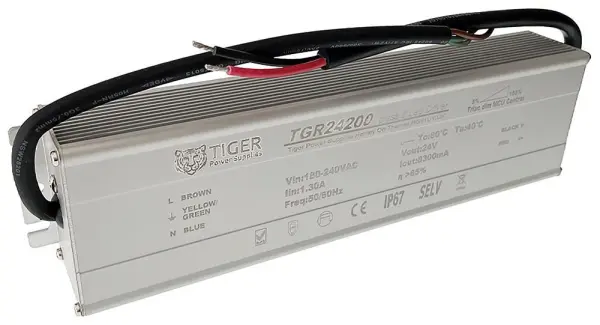

Tiger Power 24V 200W Triac Dimmable LED Driver, IP67, 8.3A

The Tiger Power 200W Triac Dimmable LED Driver is a professional-grade, fully waterproof power supply designed for robust lighting applications. Engineered with an IP67 ingress protection rating, it is completely protected against dust and temporary immersion in water, making it suitable for use in damp environments, outdoor installations, and demanding commercial settings.

This driver features Triac mains dimming compatibility, allowing for seamless integration with standard leading-edge wall dimmer switches to create the perfect ambient lighting. The dimming range typically extends from 10% to 100%, providing smooth control over light intensity, although performance may vary slightly depending on the specific dimmer switch used.

For reliable and safe operation, it includes comprehensive protection circuits against short circuits, over current, and over voltage conditions. A soft start feature ensures a gentle power-up sequence, prolonging the lifespan of connected LEDs, while low ripple noise technology delivers stable, flicker-free illumination critical for visual comfort and precision tasks.

Specifications & Features

• Output Power: 200W maximum
• Output: Constant Voltage, 24V DC
• Output Current: 8.3A
• Input Voltage: 180-240V AC
• Dimming Type: Triac (Phase-Cut) Mains Dimmable
• Ingress Protection: IP67 Rated (Dustproof and Waterproof)
• Protections: Short circuit, over current, over voltage
• Cabling: Equipped with 15cm input and output cables for straightforward connection
• Dimensions (H x W x D): 40mm x 30mm x 25mm
• Weight: 1240 grams

This high-performance driver is part of the trusted Tiger Power Supplies range, offering a dependable and versatile power solution for creating dynamic, energy-efficient LED lighting systems.
