Tiger Power Interchangeable Plug-In Power Supply 9V DC 2A 18W 2.1mm

This Tiger Power International Interchangeable Plug-In Power Supply is a switch mode power supply featuring full safety approvals to the latest 62368-1 standards and Level VI energy efficiency requirements. This 9V DC, 2A model provides a reliable constant voltage output up to 18W continuous, making it suitable for a wide range of applications.

Approved to the latest 62368-1 world safety standards, including CE, UL, and SAA, this power supply operates with an input voltage range from 100 to 240V AC (90 to 264V AC max) and an input frequency range from 47 to 63Hz. It delivers an 88% efficiency rating and features built-in short circuit and overcurrent protection for safe operation.

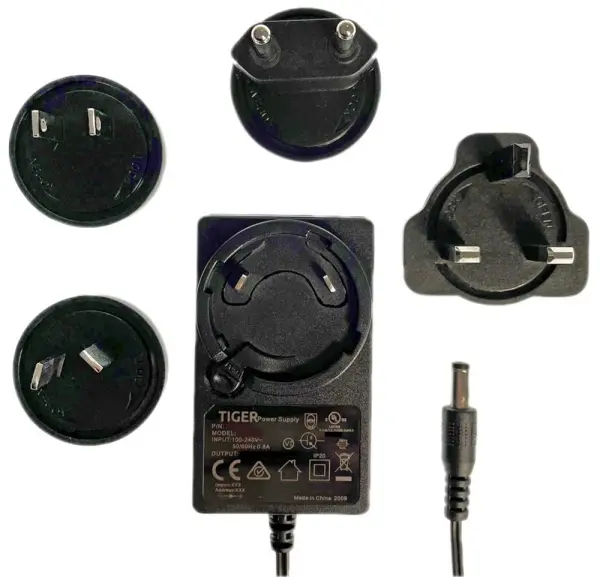

The unit is supplied complete with 4 interchangeable AC pins, allowing use in the UK, Europe, the US, and AUS/NZ. It includes a 1.5 metres DC cord with a 2.1 x 5.5 x 12mm female DC connector featuring a positive centre polarity. With a maximum standby power consumption of just 0.1W, it is designed for energy-conscious applications.

Key Specifications

• Output Voltage: 9V DC
• Output Current: 2A
• Output Power: 18W
• Efficiency: 88%
• Input Voltage: 100 to 240V AC (90 to 264V AC max)
• Cord Length: 1.5 metres
• Connector: 2.1 x 5.5 x 12mm (female), positive centre polarity
• Housing Dimensions: 59 x 40.9 x 32mm
• Operating Temperature: 0°C to +40°C
