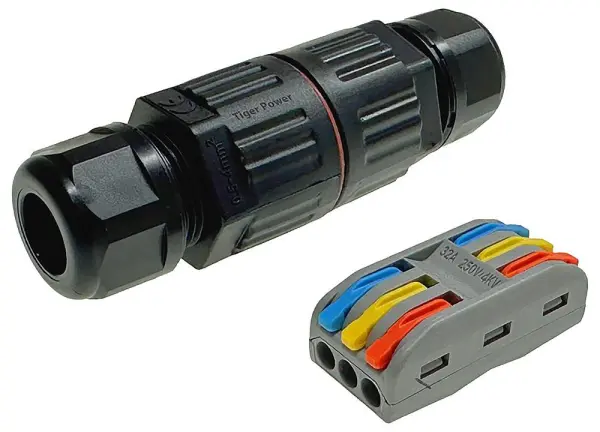

Waterproof Cable Joint Quick Connector, 3 Pole, IP68, Black

The Tiger Power Supplies Waterproof Cable Joint Quick Connector provides a robust, watertight solution for joining electrical cables, both indoors and outdoors. Engineered to an IP68 rating, this connector guarantees complete protection against dust ingress and prolonged immersion in water, ensuring reliability in harsh or damp environments. It features a quick-connect terminal block inside, which makes attaching wires exceptionally simple and fast, speeding up installation times without sacrificing security.

This 3-pole connector is highly versatile, suitable for both AC and DC electrical connections. It can accommodate cables with an outside diameter of between 4mm and 10mm, making it compatible with a wide variety of wiring. For maximum flexibility, it is designed to be used for either 3-pole (3-wire) or 2-pole (2-wire) connections. To achieve the perfect waterproof seal across this range, the connector is supplied with two sets of interchangeable black silicone seals (waterproof rubber cores). Selecting and correctly fitting the appropriate seal for your specific cable is crucial to maintaining the IP68 integrity of the joint.

Technical Capabilities

• Wiring Range: Accepts conductors from 0.5mm to 4.0mm in diameter.
• Maximum Current: Rated for up to 32A (ensure the connected wire is suitably rated for your application).
• Maximum Voltage: Suitable for use with systems up to 450V.
• Cable Compatibility: Designed for cable cross-sections from 0.5mm² to 4.0mm².

Its compact black housing is durable and discreet, making it an ideal choice for a massive range of applications, from garden lighting and pond pumps to outdoor security systems and marine electronics. The robust construction and high-performance specifications make it a dependable choice for professional electricians and confident DIYers alike.
