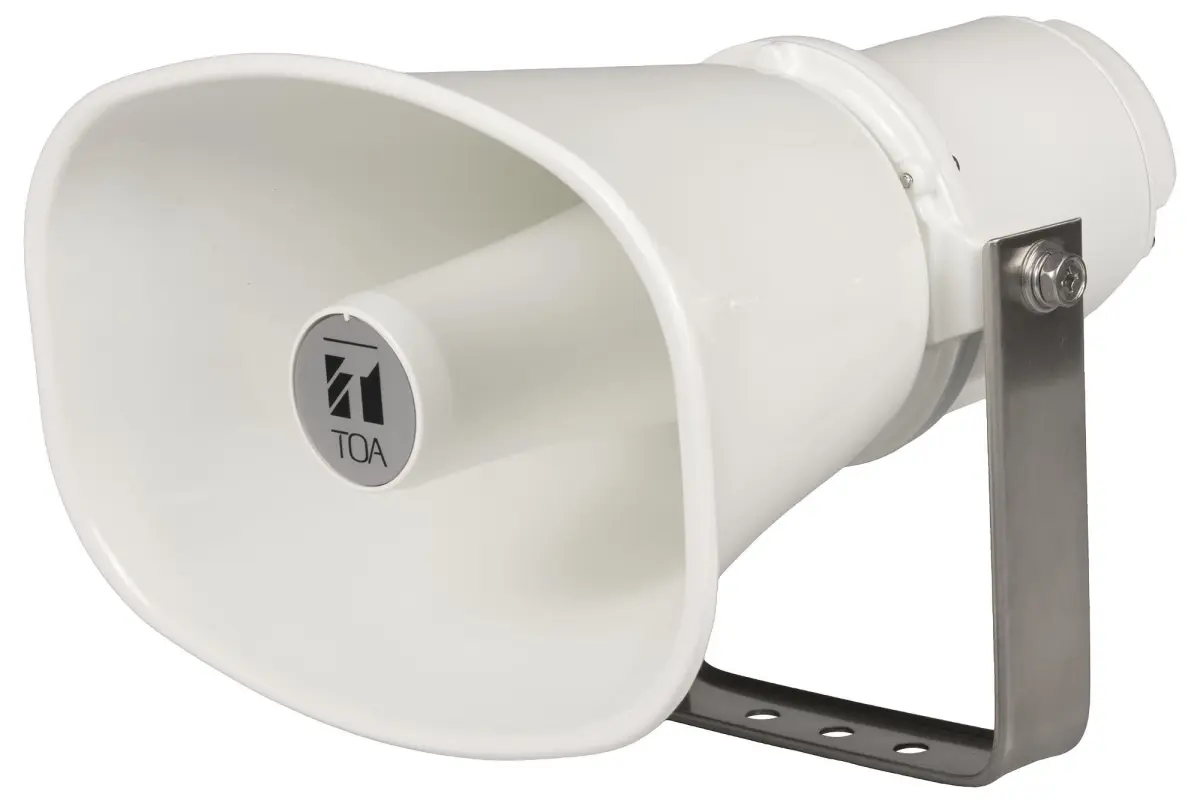

TOA 10W Active Horn Speaker, IP66

The TOA 10W Active Horn Speaker is a compact and highly intelligible speaker designed for reliable public address announcements and remote paging. Equipped with a built-in 10W power amplifier, it seamlessly integrates with network video surveillance applications, making it an ideal choice for security and communication systems.

Built to withstand challenging outdoor environments, this speaker features a rugged enclosure with an IP66 dust and water protection rating. This ensures durable performance even in adverse weather conditions, providing clear audio when it matters most.

Power and Performance

The speaker offers flexible powering options, supporting DC12V/DC24V (9V–29V), PoE (IEEE802.3at), and PoE+ (IEEE802.3af). It delivers a maximum sound pressure level of 115dB±3dB, ensuring that announcements are heard clearly over background noise. With a rated output of up to 10W when PoE+ powered, and a frequency response of 280Hz to 12.5KHz, it provides high-quality audio reproduction for voice paging. The audio input utilises a -6dB, 10kΩ electronically-balanced, removable 3-pin terminal block for secure connectivity.

Measuring 43 mm in height, 33 mm in width, and 15 mm in depth, and weighing 1850 grams, this speaker is suited for installations where space is a consideration. Whether for commercial, industrial, or outdoor security setups, it combines robust construction with advanced audio technology to deliver consistent and intelligible sound projection.
