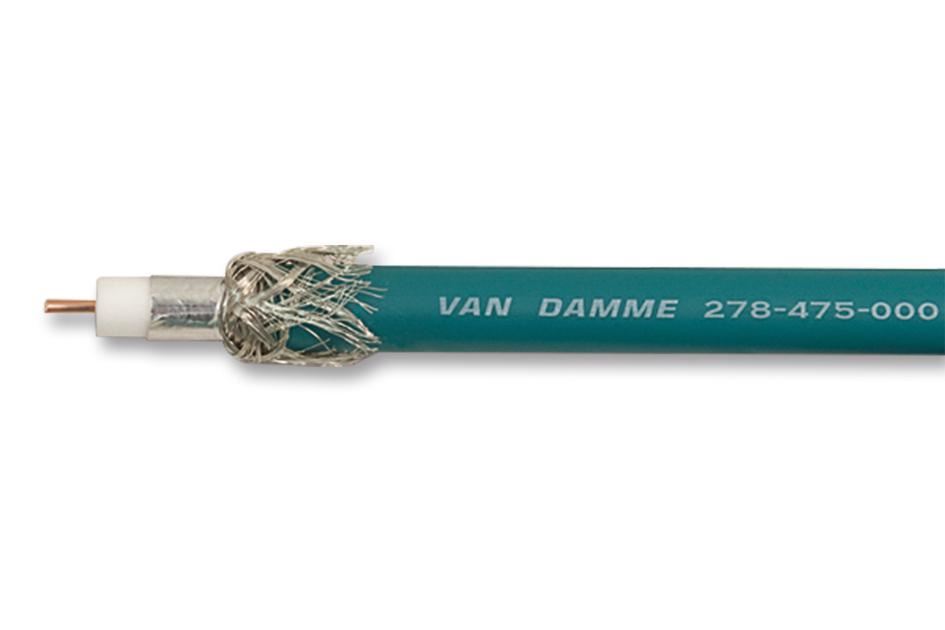

Van Damme HD Vision RG11/U LSZH Blue Coaxial Cable per Metre
Professional-grade Van Damme RG11/U LSZH coaxial cable for HD signal transmission, 75ohm, blue, 10.2mm diameter.
The Van Damme HD Vision RG11/U LSZH Blue Coaxial Cable is designed for high-definition signal transmission with superior clarity. It features a bare ultra-pure oxygen-free copper conductor and a gas-injected foam skin polyethylene dielectric, ensuring minimal signal loss and high durability.
With a 75-ohm impedance, this cable is ideal for applications requiring stable signal processing. The LSZH (Low Smoke Zero Halogen) jacket not only enhances safety by reducing toxic emissions in case of fire but also ensures optimal signal integrity.
The cable boasts an external diameter of 10.2mm and is available in a distinctive blue colour for easy identification during installations. Its solid conductor design ensures robust performance and longevity.
Applications
- Signal processing
- High-definition video and audio transmission
- CCTV and surveillance systems
- Broadcast and professional AV installations
Specifications
- Conductor Resistance: 8.2R/km
- Shield Resistance: 4.9R/km
- Insulation Resistance: >5000MR/km
- Voltage Test: 1000VDC (1 minute OK)
- Capacitance: 52pF/m
- Velocity of Propagation: 85%
This coaxial cable is part of the Van Damme HD Vision range, ensuring compatibility with professional audio-visual standards.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Signal processing
- HD video/audio transmission
- CCTV and surveillance
- Broadcast and AV
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Conductor Material: Oxygen-free copper (bare)
- Dielectric: Gas-injected foam skin polyethylene
- Impedance: 75ohm
- Jacket Colour: Blue
- Jacket Material: LSZH
- Conductor Type: Solid
- External Diameter: 10.2mm
- CPR: Not Yet Qualified
- Conductor Resistance: 8.2R/km
- Shield Resistance: 4.9R/km
- Insulation Resistance: >5000MR/km
- Voltage Test: 1000VDC (1 minute OK)
- Capacitance: 52pF/m
- Velocity of Propagation: 85%
